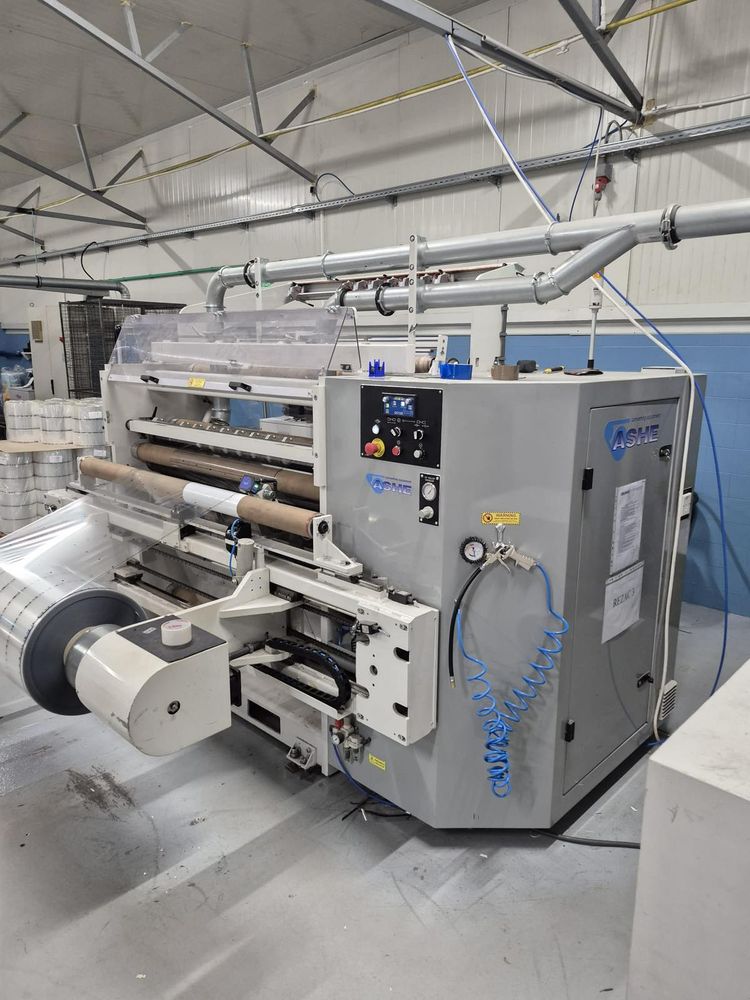

Ashe 135-60 1350 mm

Typ: Onyx Series
Speed: 350m/min- max unrestricted speed
Web width range: 300 mm (min)- 1350 mm (max)
Slitting width Range: 25 mm ( min) – 1100 mm (max)

Slitting configuration:
10 x Male Rotary Holders & Blades
10 x Female rotary Blades & Backup Spacers
1 x Set Grooved Female Spacers
16 x Square Bar Razor holders & blades

Unwind configuration: Integrated Shaftless Unwind
Unwind Control Method: Unwind tension control via multi-pad break system
Unwind diameter (max): 1000 mm
Unwind roll weight: 750 kg
Unwind Tension Range: 5-30 kg
Unwind core size: 76 mm & 152 mm
Rewind configuration:
Rewind Tension range: 5-25 kg
Rewind diameter (Max): 600 mm
Rewind roll weight: 250 kg

Rewind configuration:
2 x 76 mm ADS Blank rewind shafts
1 x full set of 76 mm Chucks
1 x Half set of 152 mm Chucks
Pneumatic supply- 90 -100 PSI
Wlectricity supply: 380-480 VAC, 3-Phase
