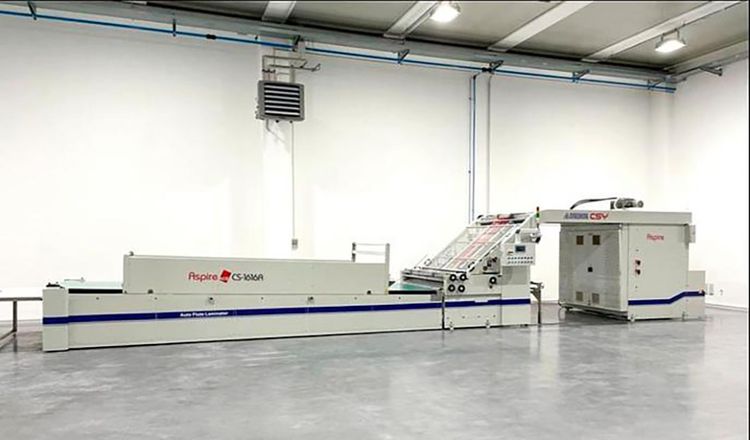

Aspire Laminating machine

DINGSHUNG Aspire
Condition Used
Maximum paper size 1650 x 1650 mm
Minimum paper size 550 x 550 mm
Total power used 30 KW
Average speed 5000 pcs/h
Speed 0-150 m/min 8000 pcs/h
Total weight of the machine 3200 kg
Electrical connection 380 V, 50 Hz, 3 phase
dimensions 13,435 x 2,650 x 2,180 mm

• Well for automatic feeding of the lower support
• Touch screen PLC for setting and managing order parameters
• Lateral coupling register
• Front coupling register
• Possibility of working with lower support of compact cardboard starting from 0.8 mm, corrugated cardboard A/B/C/D/E,
and also discovered wave.
• Automatic glue feeding with high flow pump
• Additional device for controlling the coating sheet
• Glue stirring device
• Washing device
• Pressure and collection belt for the coupled product
• CE, accident prevention compliance
