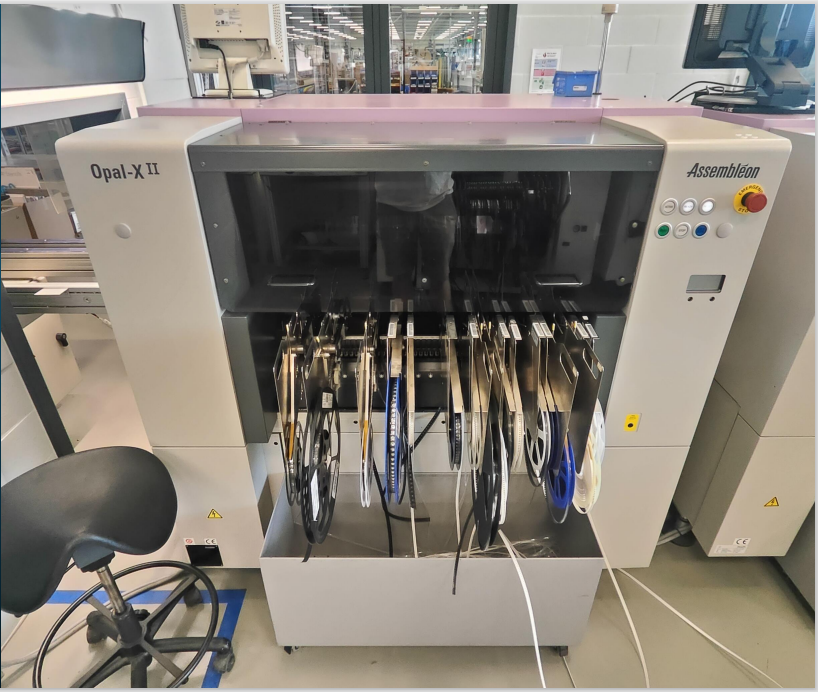

Assembleon Opal-X II

Heads 8 Super‑Fine
Throughput ~11.6k CPH (4‑head), ~17.7k CPH (8‑head)
Placement accuracy (3σ) 40–50 µm
Feeder slots Up to 100 tape feeders
Board size (standard) 460 × 440 mm
Max board size (opt.) 650 × 850 mm
Component range 01005 to 45 × 100 mm, height up to 11 mm
Nozzle/tip positions 20 positions
Power & air requirements ~4.4 kVA, 0.55 MPa compressed air
Footprint (L × W × H) ~1650 × 1408 × 1850 mm
Weight ~1600 kg
Year of manufacture ~2006–2008
This machine comes with feeder carts
