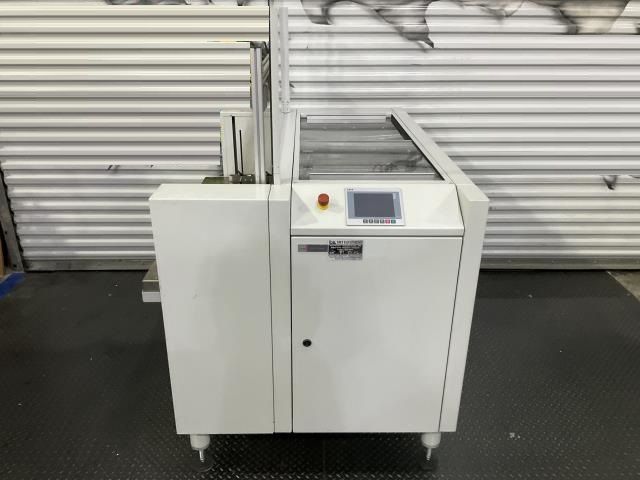

ASYS AMS 03D Mag Loader

Right to Left Board Flow
11" Max Board Width
3 Magazine Capacity

Specifications ( See Details above for installed options )
ASYS AMS 03D Mag Loader Specification:
PCB’s arriving from the transfer conveyor are transported
with a shuttle mechanism into position for
one of the magazines.
An electrically powered pusher then slides the PCB’s
into the respective magazine.

*Features:
_ Automatic switching to the second magazine
_ Transfer conveyor with integrated shuttle mechanism
_ Magazine platform vertically aligned using a tension clamp
_ Different magazines can be used without the need
for unit modification
_ Programmable transfer position allows for flexible
installation of the unit
_ Access to the magazine on the open side of the unit

*Options:
_ Magazine adaptation
_ Electrical width adjustment
_ Automatic width adjustment
_ Multiple insertion
_ Universal magazine clamp
_ Control function on inlet conveyor
_ Flexible Dual lane

*Machine Configuration:
Transport height - 850 mm ± 50 mm
Max. transport width - 460 mm
Interface - Siemens, SMEMA, SMPI, Panasonic, Fuji, Sanyo
Operating side - Front of the machine
Fixed rail - Front of the machine

*Magazine Size:
Magazine length - 535 mm
Magazine width - 530 mm
Magazine height - 568 mm
Slot spacing - 5- 20 mm
Buffer spacing - 1- 50 Slots
Magazine weight max. - 60 kg

*Panel Dimensions:
Panel length - 50 to 460 mm
Panel width - 50 to 460 mm
Panel thickness - 0.8 to 4.5 mm
Component clearance - + 12,5 mm / - 40 mm
Panel weight - to 3 kg

*Machine Description:
Length x Width x Height - 1100 x 1470 x 1120 mm
