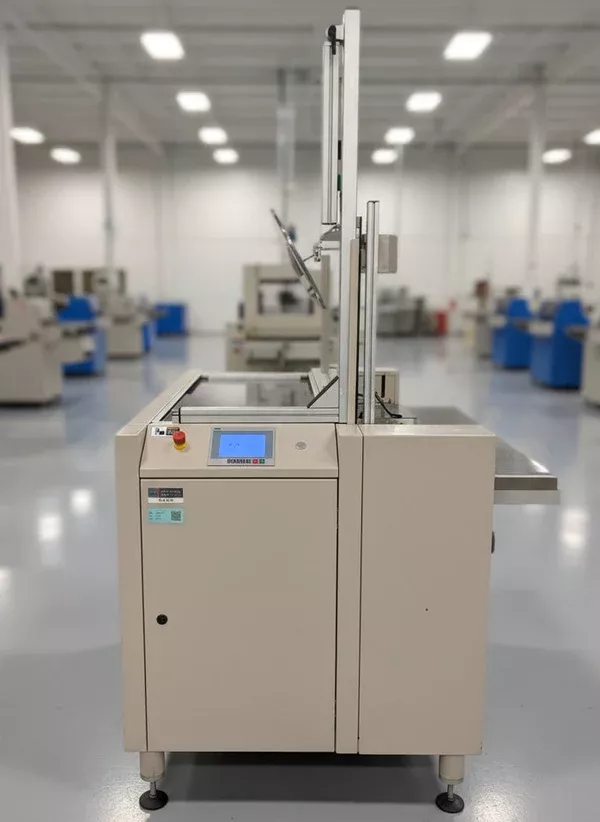

ASYS AMS 03D

Equipment Type: Magazine Loader
Minimum Width: 3”
Maximum PCB Size:
Width: 10.75”
Length: 20”
Belt Track Length: 23.5”
Conveyor Sections: 1
Section 1 Length: 23.5”
Width Adjust Style: Powered
Board Flow Direction: Left to Right
SMEMA Compliant
Volts: 120
Phase: 1

The loading station AMS 03D is used to automatically unload PCBs
from an SMT-production line or from individual process machines e.g.
stencil printers, pick and place systems, reflow ovens or test systems.
Arriving PCBs are taken over onto the inlet conveyor and
then transported sideways on an integrated shuttle and
subsequently pushed into the magazine with an inserter mechanism.
