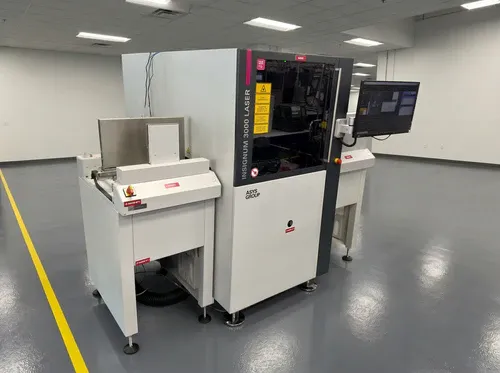

ASYS INSIGNUM 3000 Laser Marker

High-Speed Inline PCB Traceability System
for Modern SMT Manufacturing
The ASYS INSIGNUM 3000 Laser Marker is a
high-precision inline laser marking solution designed to
provide permanent PCB traceability throughout the
manufacturing process.
Built for automated SMT production environments,
this system delivers fast, accurate, and repeatable marking of
QR codes, DataMatrix codes, serial numbers, logos,
and other identification data. With a recently installed system,
a new laser module, and like-new condition,
this machine offers manufacturers a cost-effective opportunity
to enhance quality control, compliance, and production visibility.

Key Highlights
• Permanent PCB laser marking system for traceability
and quality control
• Marks QR codes, DataMatrix codes, serial numbers, text, and logos
• Designed for fully automated inline SMT manufacturing environments
• High-speed marking for demanding production requirements
• New laser module included
• Installed in late 2024 and first used in early 2025
• Seller states machine is fully functional and in like-new condition
• Available immediately

Technical Specifications
• Manufacturer: ASYS Group
• Model: INSIGNUM 3000 Laser Marker
• Machine Type: Inline PCB Laser Marking System
• Laser Technology: CO2 Laser System
• Operation Mode: Fully Automated Inline Production
• Factory Interface: SMEMA Compatible
• Software Capability: Offline Programming Supported
• Integration: MES and ERP Compatible

PCB Handling Capabilities
• PCB Size Range: 70 × 50 mm to approximately 460 × 460 mm
• Marking Area: 400 × 400 mm
• PCB Thickness: 0.8 mm – 4.0 mm
• Maximum PCB Weight: Approximately 3 kg
• Transport System: Inline conveyor-based handling
• Positioning System: Integrated PCB clamping for
stable marking accuracy

Precision & Throughput
• Position Accuracy: ±150 μm
• Typical Cycle Time: Approximately 1 second per marking process
• Minimum Mark Size: Approximately 0.127 mm (5 mil)
• Production Capability: High-throughput manufacturing environments
• Mark Quality: Highly repeatable and readable markings

Machine Performance
• Laser System: CO2 laser marking technology
• Positioning: Servo-driven X/Y positioning system
• Operation: Continuous industrial production capability
• Production Environment: Suitable for 24/7 manufacturing operations
• Performance: Stable and repeatable marking results

Physical Specifications
• Machine Weight: Approximately 260–275 kg
• Footprint: Compact design for SMT line integration
• Installation Type: Inline industrial installation
• Space Efficiency: Optimized for production floor utilization

Condition & Availability
• Installed: Late 2024
• First Production Use: Early 2025
• Condition: Seller states 100% functional and like new
• Additional Value: Includes new laser module
