ASYS LLB 01

Combined Buffer and Separator Station
8 Batch Capacity
Left to Right Board Flow
ASYS PLC

Specifications ( See Details above for installed options )
The logistics loader LLB 01 is used to load marking stations or
SMT-production lines with bare PCBs.

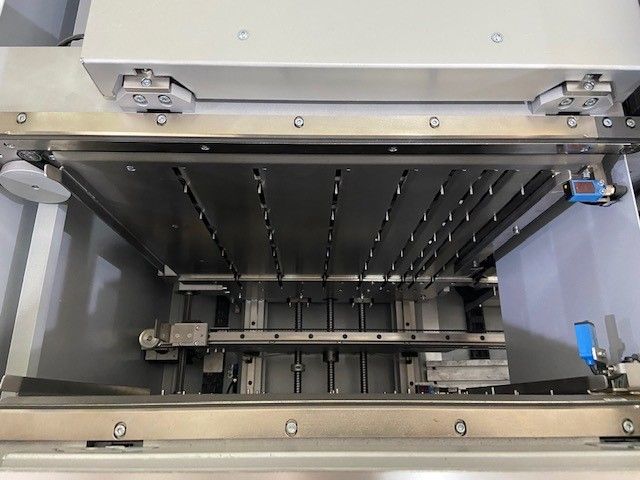

It combines a buffer station for PCB batches and a separator
station in one unit. The system is designed for correctly sorted
separation of the PCB batches according to the FIFO principle.
They are stored mechanically isolated from each other until the
separation process. This prevents the possibility that individual
circuit boards of various charges may be mixed up.
The PCB packages are manually inserted into the system and
buffered. Then they are fed to the separator station. During the
separation process, the stack is processed from the top down.
Hence the separation process is independent from the stack
weight, making it very gently for the product.

Features
_ Processing of the batches according to the FIFO principle
_ Capacitiy 8 batches á 60 mm
_ Loading the machine without stopping production
_ Separation with clamp mechanism
_ Electric width adjust
_ Colour display with graphical user interface
_ Product parameters can be changed during running operation
_ Product memory function
_ 2 colour signal lamp (LED) and alarm horn
_ Small footprint
