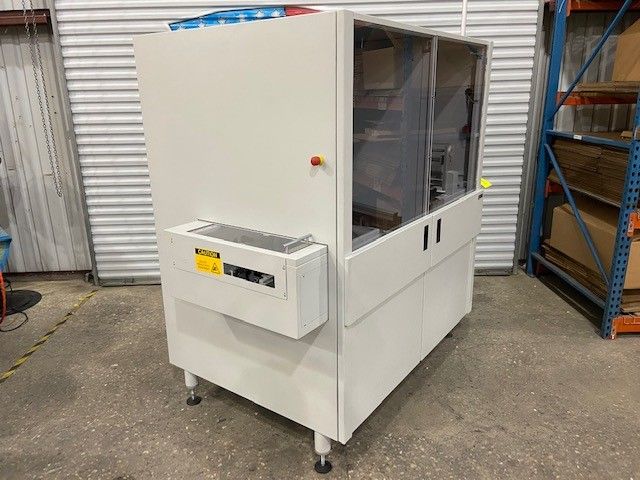

ASYS MPS 100

Right to Left Board Flow
18" Max Board Width
Pass Through Mode

Specifications ( See Details above for installed options )
The buffer combines the functionality of magazine loader
and unloader in one unit. Incoming PCB’s can be stored in a
magazine and on demand from a following unit they can be
pushed out and transferred. The unit is equipped with a conve-
yer underneath the magazine for pass-through mode.
This unit is also equipped with two magazines and two
magazine axles

This allows a high buffer capacity,
three sorting possibilities and also the possibility of a separate
use for each magazine. For example the unit can be used with
the first magazine as a storage unit and the second
magazine as a loading unit, both functioning independently of
each other.

Features
-Variable operating modes:
- Pass-through
- Load
- Unload
- Input transfer
- Output transfer
- LIFO
- FIFO
- Sorting
- Cooling
_ Changeable magazine
_ Pass- through conveyor underneath the magazine platform
_ Error loop
_ Electric width adjustment
