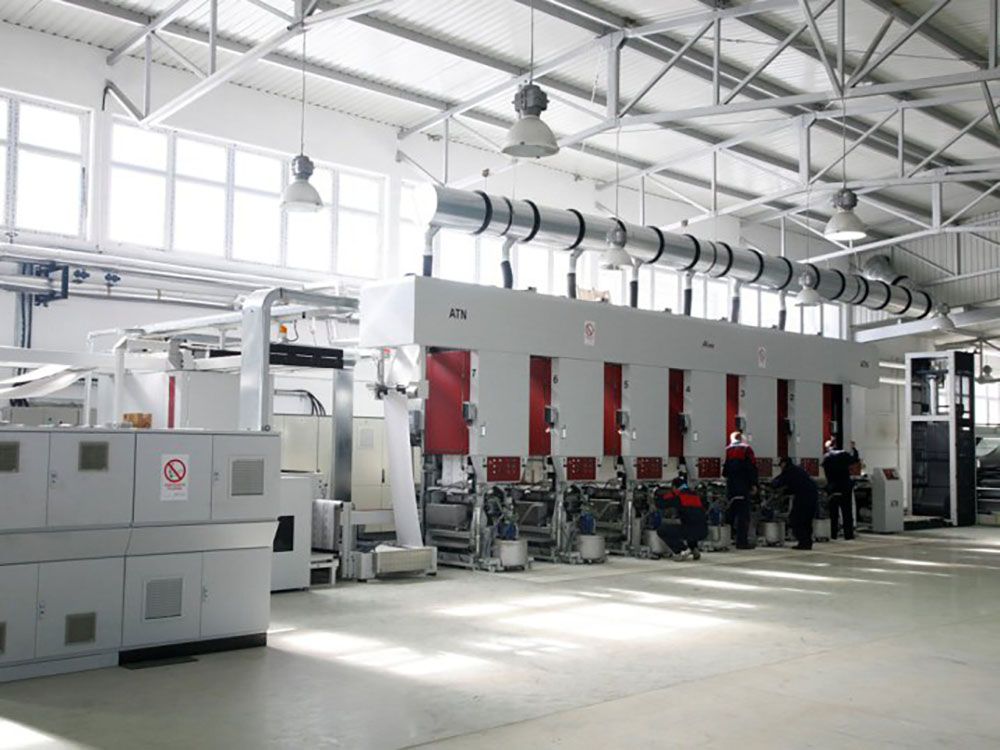

Atena RDC 10 660 mm

Max. web width: 660 mm
Printing width: 640 mm
Production speed: up to 200 m/min
Power consumption: 400 V, 3 phases, 50 Hz
Substrate Weight (Paper/Cardboard): 60-300 gsm
Max. Rotary Die Cutting width: 660 mm
Max. Rotary Die Cutting Repeat: 800 mm
Min. Rotary Die Cutting Repeat: 535 mm
Air Volume: 7000 m3/h
Air Capacity: 40 m/s
Register accuracy Print to Print: +/- 0,10 mm
Print to Cut: +/- 0,15 mm

Machine designed for:
Production of cigarettes packaging, Paper labels and Cardboard packaging
Counter 12.136.991 impressions
3x stage rotary die cutting unit RDC10
Drying: thermo-oil installation
DGC 650 from Eltromat Register control
67x printing cylinders (13 steel base only and 54 copper covered)
3x sets of cutting + creasing tools (buyer can’t use the whole tool, only original ATN cassettes in which the tools are packed)
The splicing device is mounted on a robust fixed frame. Two independent sliding rules allow the easy-on-both-side pasting preparation
1. Quick stop of the finishing reel
2. Locking the web entering the festoon
3. Locking on the finishing and the new webs by suction boxes
4. Oblique cut by symmetrical guillotine knives
5. Evacuation of the tips
6. Simultaneous application of the two tapes by means of oscillating arms
7. Unlocking of the web by releasing the nip rollers and the suction
8. Acceleration of the reel to fill up the festoon
9. Tension control at the production speed thanks to a loaded air piston and the 4Q DC drive

This unit eliminates dust or foreign particles on the web
1 Vacuum head made of aluminium
2x Electrodes for ionisation ensuring elimination of static charges
1 Set of static brushes
1 Dust recuperation bag positioned on the machine drive side
The positive infeed unit with constant tension
2 electrostatic assistance units from Eltex for a better inking are included
Doctor blade
The doctor blade is arranged with three knuckles
A chill roll
Longitudinal sidelay register control
Type DGC 650 from Eltromat
1 Rotary decurler
1 Spreading unit
1 Electrical equipment
1 Universal sheeting tool
1 Slitting unit with 2 scissor knives (for the 2 trims) placed on the pull-through unit
1 Trim exhauster with pipes and suction pump placed closed to the machine
The cutting cassette is installed like a cutting tool on the RDC third stage
1 High pile receptacle
1 Single shaft rewinder RHS
1 Automatic edge guide
1 Single pneumatic expanding shaft for cores inner diameter 76 mm
1 Motor
Lift of the reel from the floor
Web cleaner
WEB guide system
Turn bar
