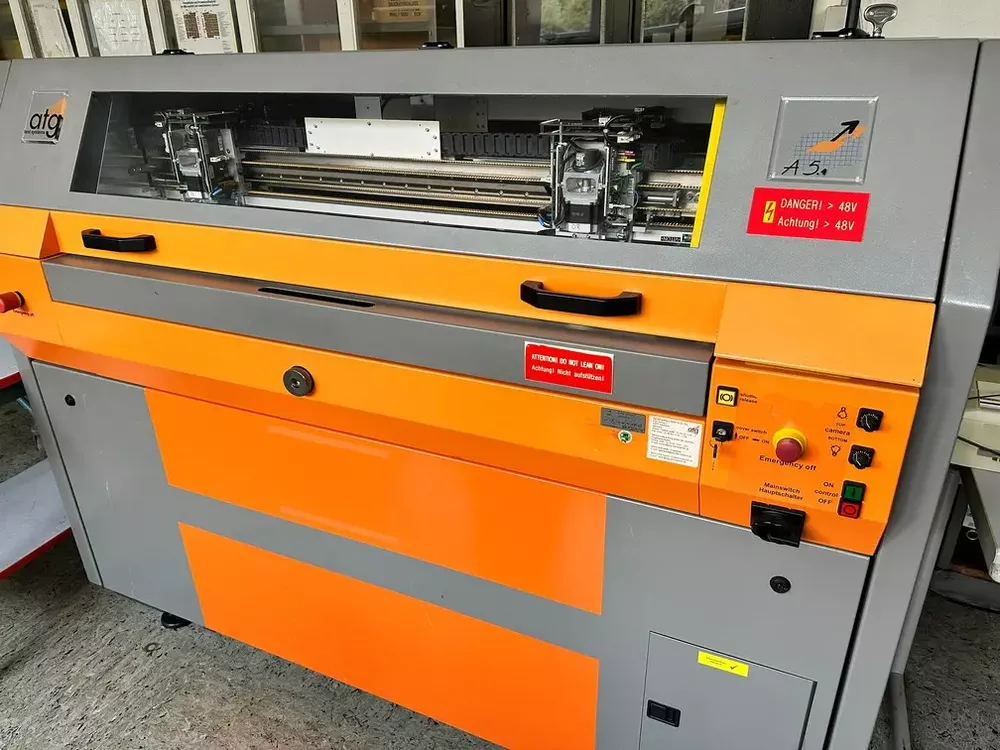

ATG A5

• Number of Test Probes: 8
• Top Probes: 4
• Bottom Probes: 4
• Board Fixing System: Variable
• Multi Board Test: Supported
• Maximum Board Size: 650 x 475 mm
• Test Area X: 610 mm
• Test Area Y: 460 mm
• Maximum Board Thickness: 7 mm
• Probe Accuracy: ±20 µm
• Smallest Pad Size: 50 µm
• Smallest Testable Pitch: 100 µm
• Repeatable Accuracy: ±10 µm
• Motor Type: High speed 48 V motors
• Continuity Test Range: 1 Ω to 10 kΩ
• Continuity Test Accuracy: ±(0.5 Ω ±0.5 %)
• Isolation Test Range (FM): Up to 25 MΩ
• Isolation Test Range (Ohmic): Up to 200 MΩ
• Maximum Test Voltage: 500 V
• Contact Pressure: 10 to 100 g
• Probe Speed: 10 to 100 mm/s
