Atlantic HPT-30-150

Tonnage: 150 t
Bending Length: 3100 mm
Distance Between Columns: 2600 mm
Throat Depth: 250 mm
Daylight Opening: 325 mm
Stroke: 120 mm
Table Height: 875 mm
Adjustment Speed: 70 mm/sec
Working Speed: 9 mm/sec
Return Speed: 60 mm/sec
Hydraulic Pressure: 220 bar
Control Type: NC (ATL 550)
Total Power Requirement: 5.6 kW
Machine Weight: 8,400 kg
Machine Dimensions: 3500 x 1700 x 2240 mm
Backgauge Axis: X-axis motorized NC
Backgauge Stops: 2 manually adjustable fingers
Program Memory: 200 programs / 400 blocks

Electro-hydraulic NC press brake
Torsion shaft system
Swivel control panel

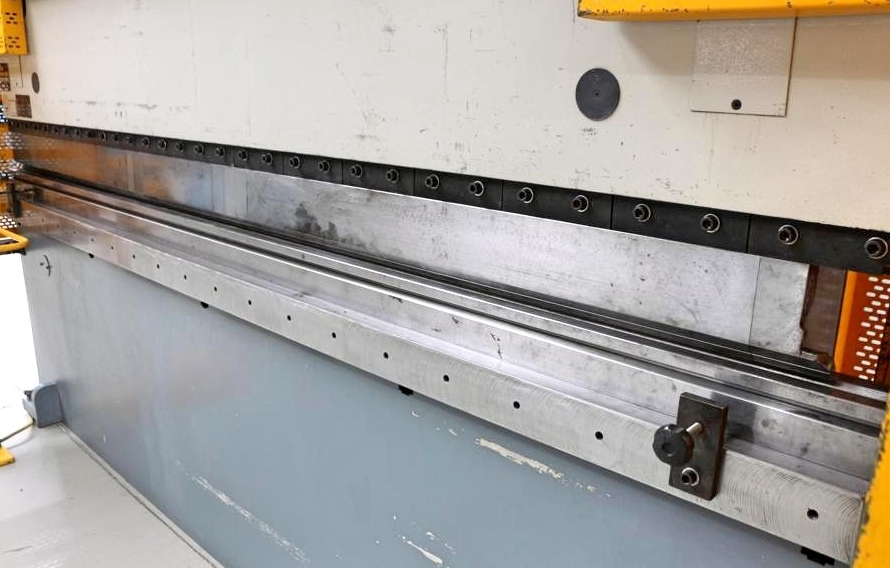

Split upper tooling set
Rotating universal die block
Two-hand / foot control operation
Side and rear safety guarding
Operating manual included
Circuit diagram included
