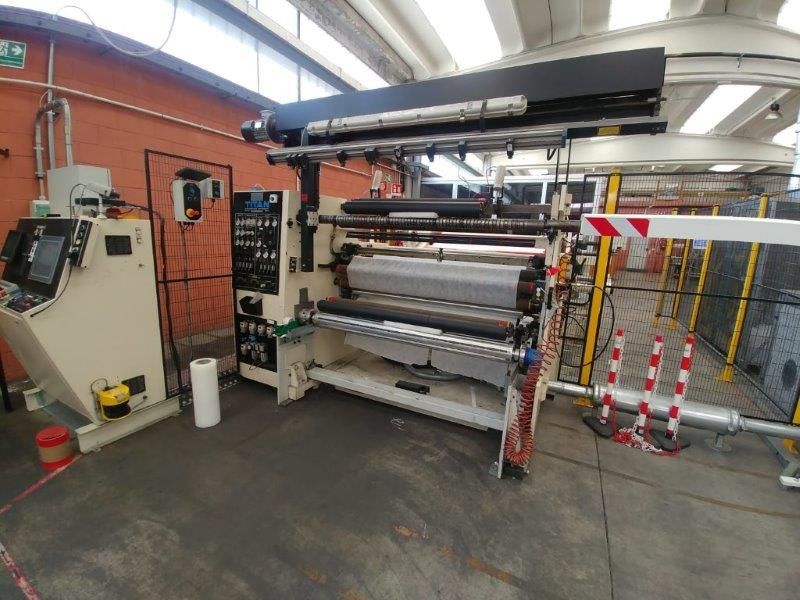

Atlas SR6 1x 1620 mm – 8x 200 mm

1.04 Use cases Slitter rewinder
1.05 Unwinder diameter 1000 mm
1.06 Winding diameter 3″ 2x max 400 Kg each – 850 mm
1.07 Winding diameter 6″ 1x max 700 Kg – 850 mm
1.08 Maximum width 1x 1620 mm – 8x 200 mm
1.09 Mechanical speed (m/min) 550 m / min
1.10 Power supply 3 x 400V, 50Hz
1.13 Full load absorption 45 kVA – 63 A
1.14 Compressed air supply Max 6-8 bar
1.15 Material Paper and plastic films
1.16 Max. working width 1620 mm
1.17 Web guide Brand: Fife
1.18 Unload reels Yes
1.19 Board table Yes
1.20 Trim system Yes
1.23 Further information 3 and 6 inch expandable and friction shaft kit
