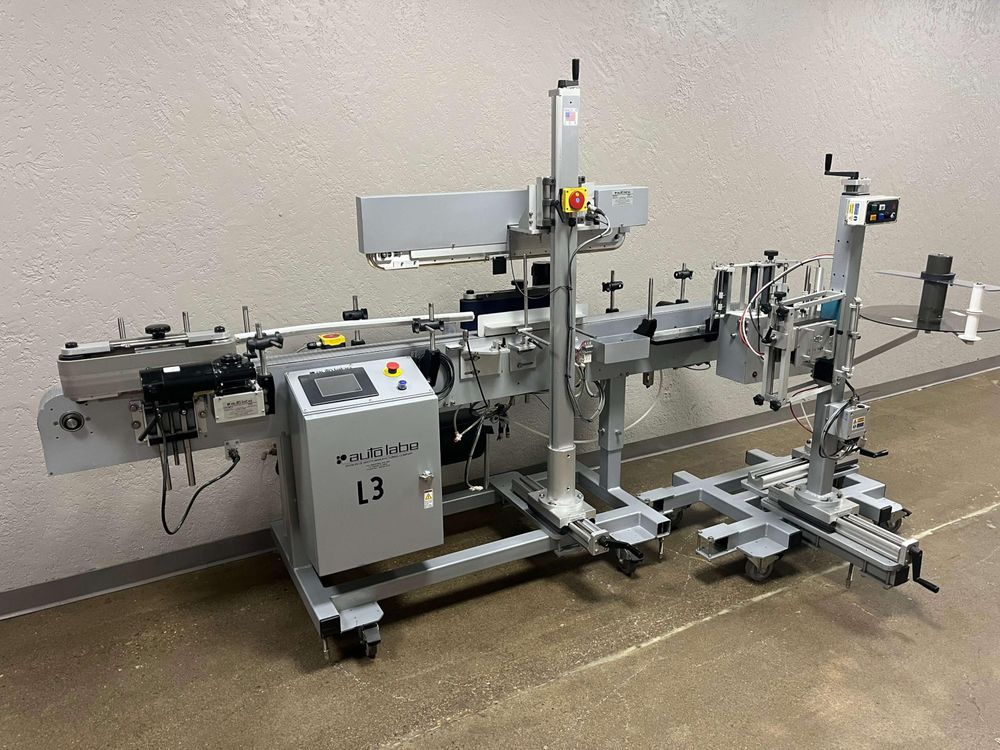

Auto Labe 680-1 REV H, 822E REV, 110S RH REV

Automatic Labeling System

Features
Two adjustable stepper driven label applicators
Powered wipe down rollers
Product metering
Orientation belts or feed screw assembly
Top hold-down belt
Control panel with color HMI touchscreen
Dual product alignment belt assembly with on-center adjustment
Component speed following and
Memory settings for quick recall of presets

Options
Coding and marking options
Wrap station for round products
Vision systems and reject stations
Web monitoring kits
Warning towers and outputs

Auto Labe 110S RH with 822 E REV
Wraparound Pressure Sensitive Labeler Unit with:
Production output rate:
Up to 300 pieces per minute
Speed: Up to 12 inches per second
Label size:
Minimum: 1 length x 0.5 width (inches)
Maximum: 39 length x 6 width (inches)
Includes: Autolabe 830 wraparound
Media size:
12 inch roll
3 inch inside diameter core
Conveyor dimensions:
72 length x 6 width (inches)
Pneumatic requirements:
90 pounds per square inch at 3 cubic feet per minute
Power supply: 120 voltage / 1 phase / 60 hertz / 10 amperage
