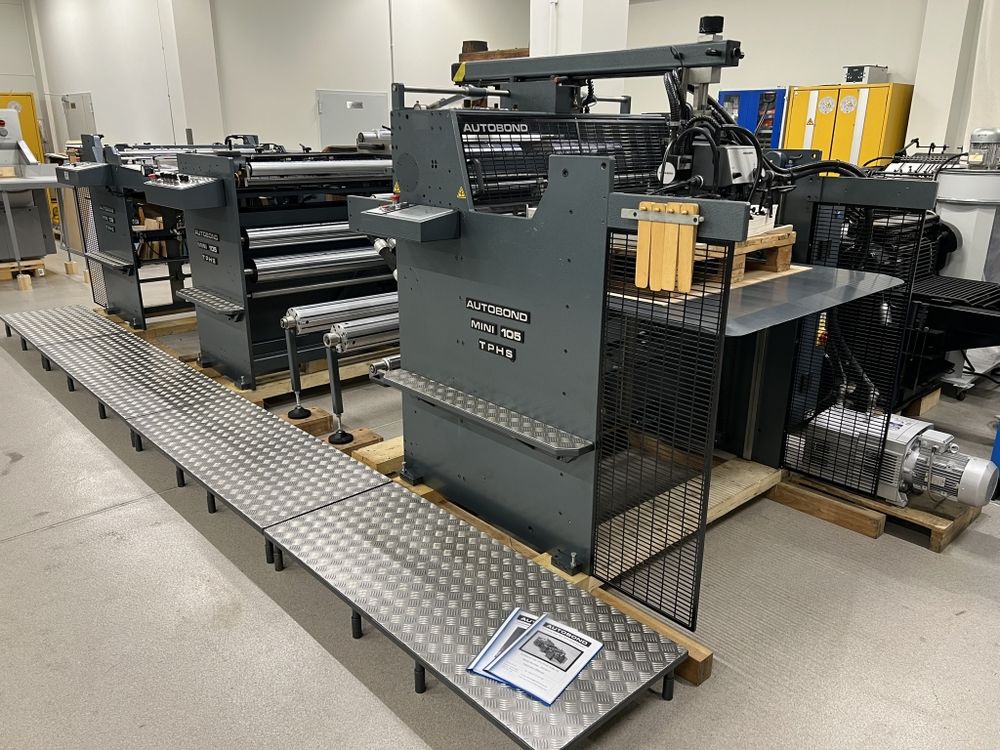

Autobond Mini 105 TPH-RU-SAB-VS Automatic Laminating Machine

The most efficient machine on the market from a legendary manufacturer.
This advanced machine boasts high performance thanks to an external heating thermostat.

Technical specifications:
Max sheet size: 1060mm x 1060mm
Min sheet size: 320mm x 285mm
Min grammage: 115 gsm
Max grammage: 650 gsm
Operating temperature: 80-135°C
Max operating speed: 120m/min
Weight: approx. 4500 kg
380V power supply
Additional 8 bar air supply
Large-diameter, chrome-plated steel cylinder, filled with water for greater stability.
Double-sided laminating
Pneumatic clamping, separation, and automatic feeding. Adjustable pressure.
High-stack feeding, Heidelberg Speedmaster feed head.
Expansion roller for film fixing.
Sheet straightening module.
Stacker for sheet removal.
The machine can operate in pallet-to-pallet or pallet-to-roll configurations.
Two independent heating systems for two rollers, and a water-based sheet cooling system via rollers.
