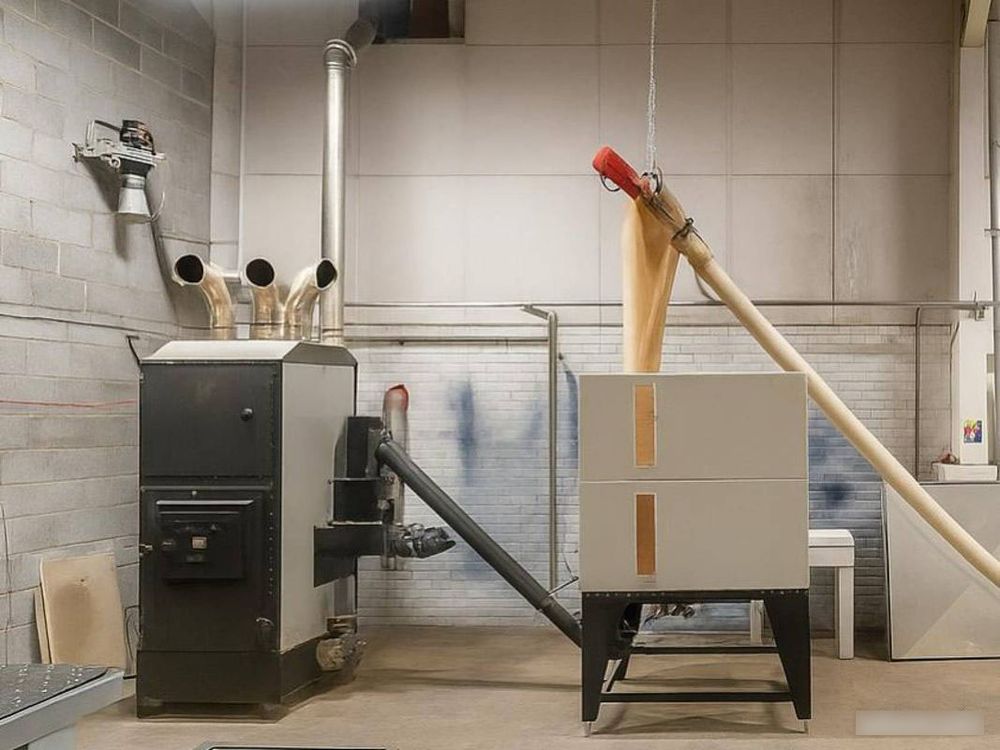

AUTOMATIC LOADING HOT AIR GENERATOR FOR CHIPS/SAWS/PELLETS
EUROPE (Western and Northern)
AUTOMATIC LOADING HOT AIR GENERATOR FOR CHIPS/SAWS/PELLETS
VERY HIGH PERFORMANCE
114 kW - 6000 m3/h with 2 outlets Ø 200mm
With chimney gas extractor
With silo of approximately 1.9m3
Electric: 380 V
200 mm chimney
Dimensions: L*D*H: 1100 x 1450 x 2000 mm - 570 kgs + SILO: 2000 x 1200 x 2000

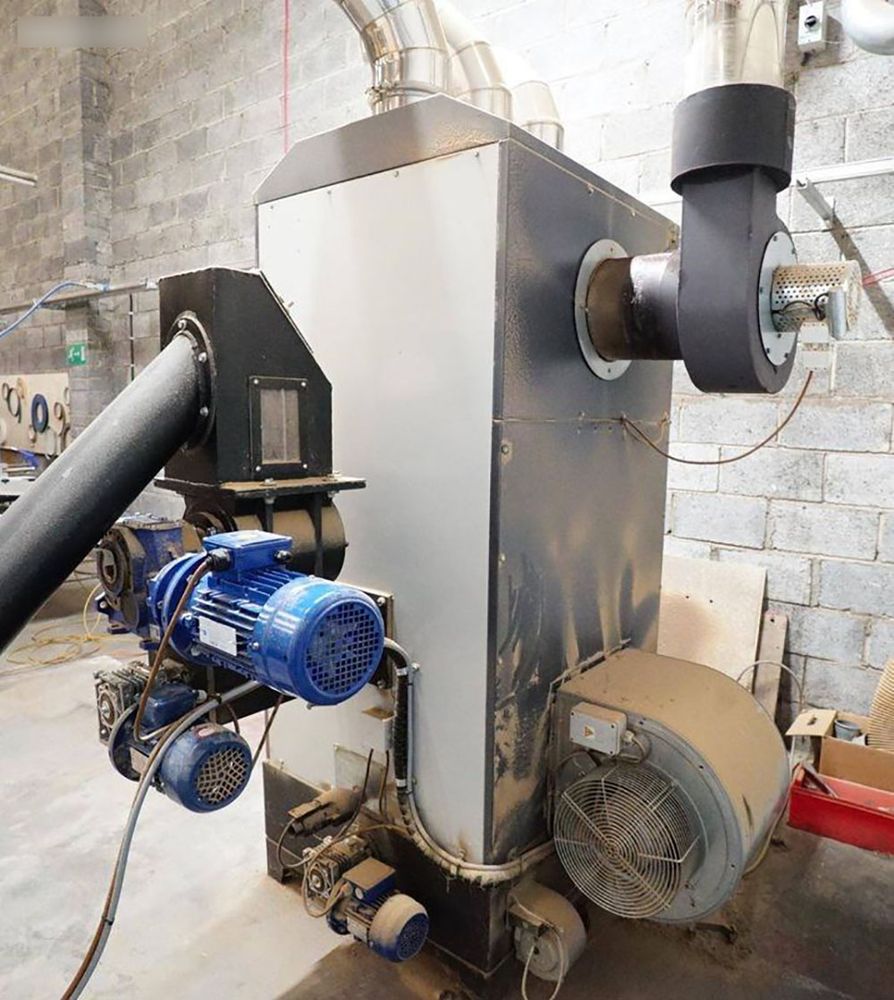

The hot air generators in this range are characterized by high thermal efficiency.

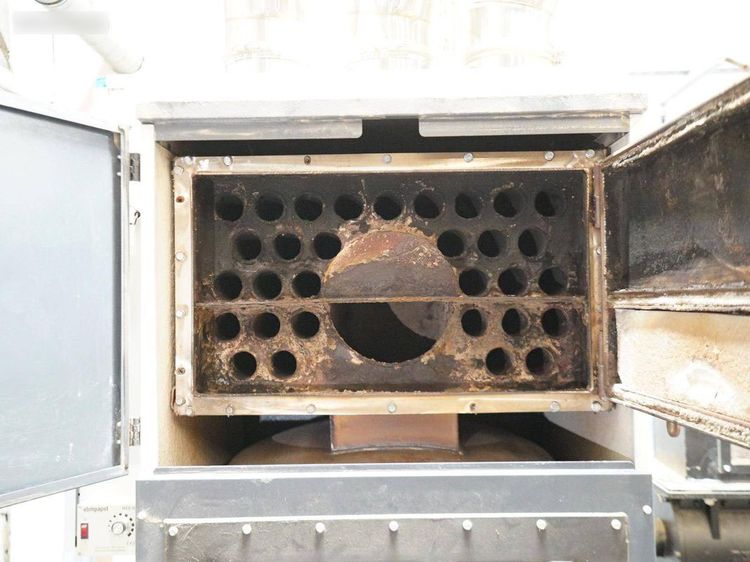

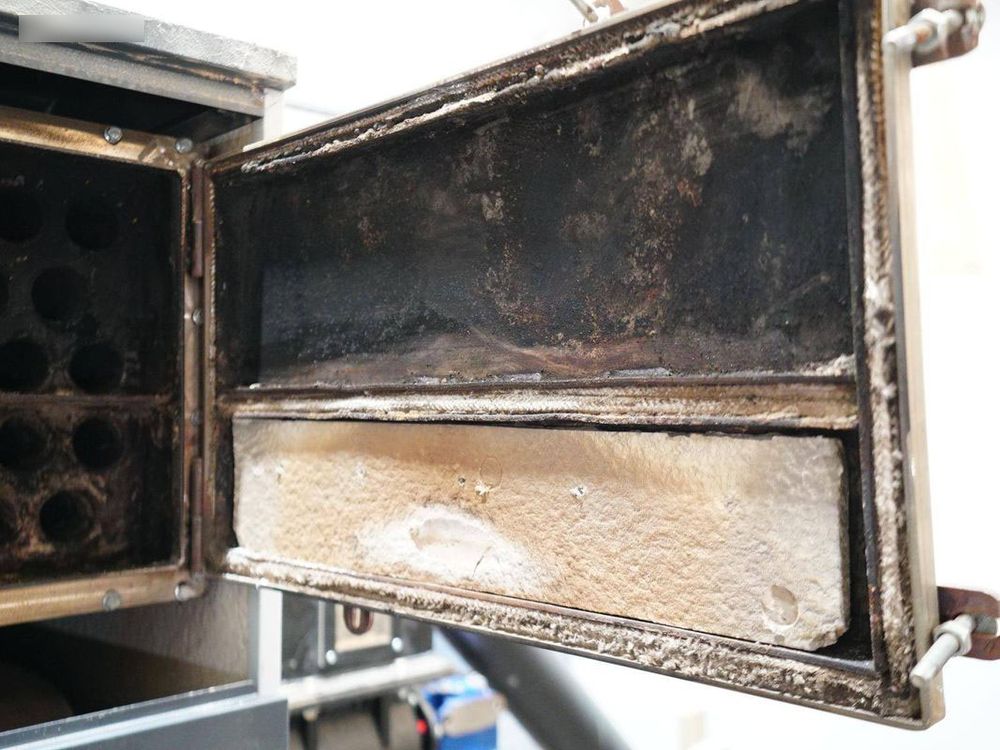

The combustion chamber as well as the exchanger are made
of refractory stainless steel while the external structure is made of zinc-plated and varnished panels,
which maintain the heat inside the system.
The ECO system allows combustion fumes to be recycled up to 70% by re-entering the combustion chamber, mixed with fresh air.
The ECO system also allows a reduction in heavy combustion fumes, better efficiency and a reduction in consumption of 20%.
SILO: loaders have been studied and developed to offer great versatility,
being able to operate on sawdust, shavings, pellets and chipped wood.
The square base hopper is equipped with a mechanical agitator, which, through its continuous movement,
prevents the formation of blockages.

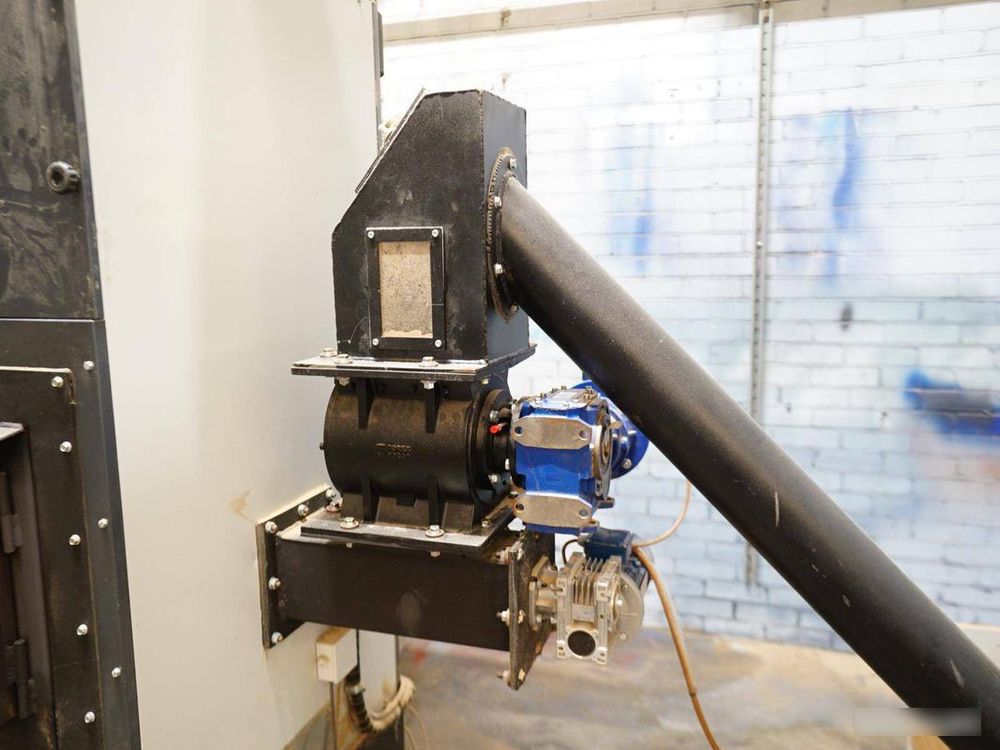

The endless screw doser in turn feeds a sluice, which supplies the hearth of the hot air generator.
EXCELLENT CONDITION - RARE FOR SALE
