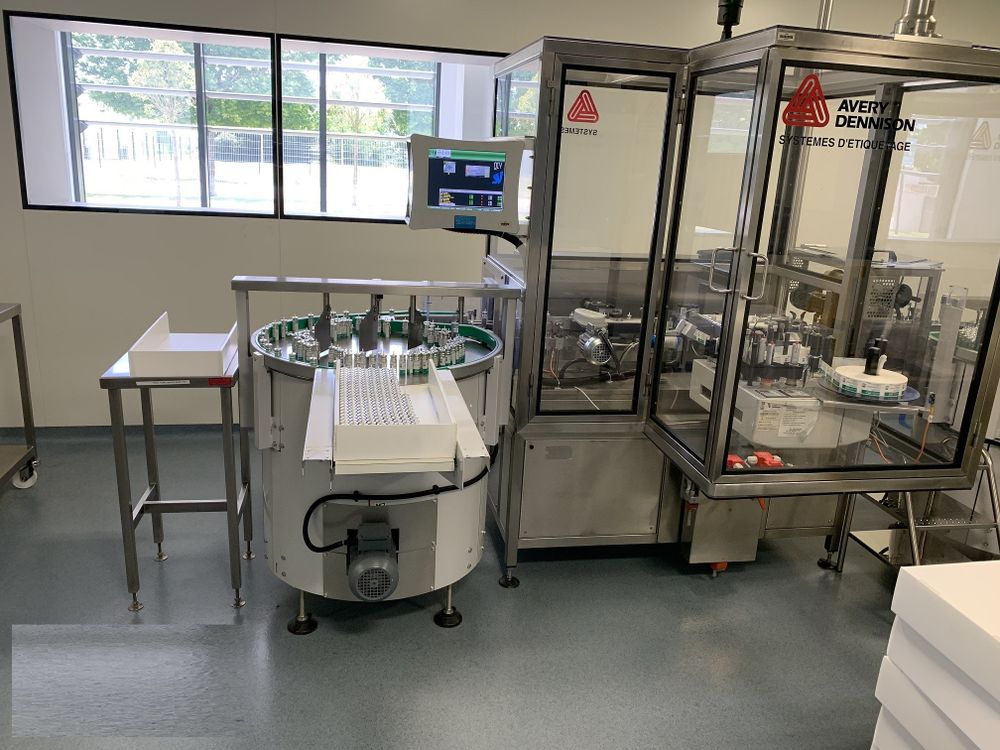

Avery WLT720 (ALX720), Vial Labeler

Printer and label laying device
Siemens HMI
Seavision control system (cameras + HMI)
2 accumulation tables (upstream and downstream)
Max speed: 150 products/minute
For vials diameter 30 to 100 mm (manufacturer data)
Adapted originally for formats:
– Diameter 22 height 62 / alu
– Diameter 40 height 100 / brown glass
Labels’ format range:
– width: 18 to 100 mm
– length: 5 to 330 mm
– roll: max external diameter 400 mm / chuck 76 mm
Power supply: 400 V 3-ph / 50 Hz / 2,5 kVA
Pneumatic supply: 4 to 6 bars
Technical documentation: available, details on request
Labeler’s overall dimensions (l x d x h): 1900 x 2900 x 2200 mm
Table 1’s overall dimensions (l x d x h): 1800 x 1250 x 1200 mm
Table 2’s overall dimensions (l x d x h): 1660 x 950 x 1150 mm
