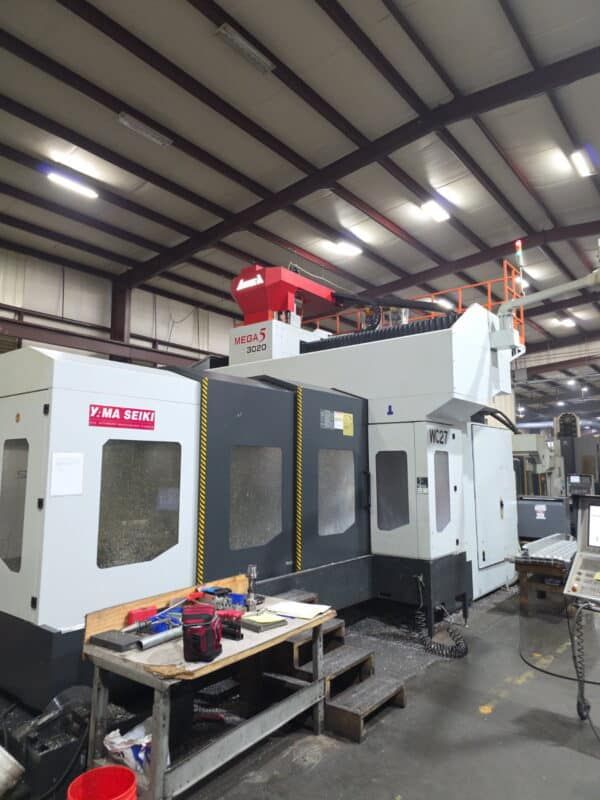

AWEA, Yama Seiki MEGA 5 P3020 3 Axis

X-axis travel: 118.1 in
Y-axis travel: 98.4 in
Z-axis travel: 39.3 in

X-axis rapid feedrate: 393–787 IPM
Y-axis rapid feedrate: 590 IPM
Z-axis rapid feedrate: 393 IPM

Cutting feedrate: 1–10 m/min
Control: Heidenhain 640 series
Tool changer capacity: 40 ATC
Spindle taper: HSK-100A
Spindle speed max: 15,000 RPM
Spindle motor: 66 / 53 HP (30 min / continuous)
Coolant through spindle: 20 / 70 bar
Automatic tool length measurement
Automatic workpiece measurement
Spindle cooling system
Linear scale feedback X/Y/Z axes
Centralized automatic lubrication system
Fully enclosed splash guard (no roof)
Coolant system with pump and tank
Twin screw chip augers
Chip conveyor system
Electric cabinet with air conditioning
Mobile handwheel
Foot switch for tool release
Table size: 126 in x 60 in
Max table load: 26,450 lb
Distance between columns: 66.9 in
Spindle nose to table: 200–1,200 mm
Spindle center to table (90° head): 480–1,480 mm
Max workpiece length (X): 3,000 mm
Max workpiece width (Y): 1,500 mm
Max workpiece height (Z): 850 mm
Coolant tank capacity: 420 L
Lubrication oil tank: 6 L
Hydraulic tank: 100 L
Pneumatic pressure: 6–8 kg/cm²
