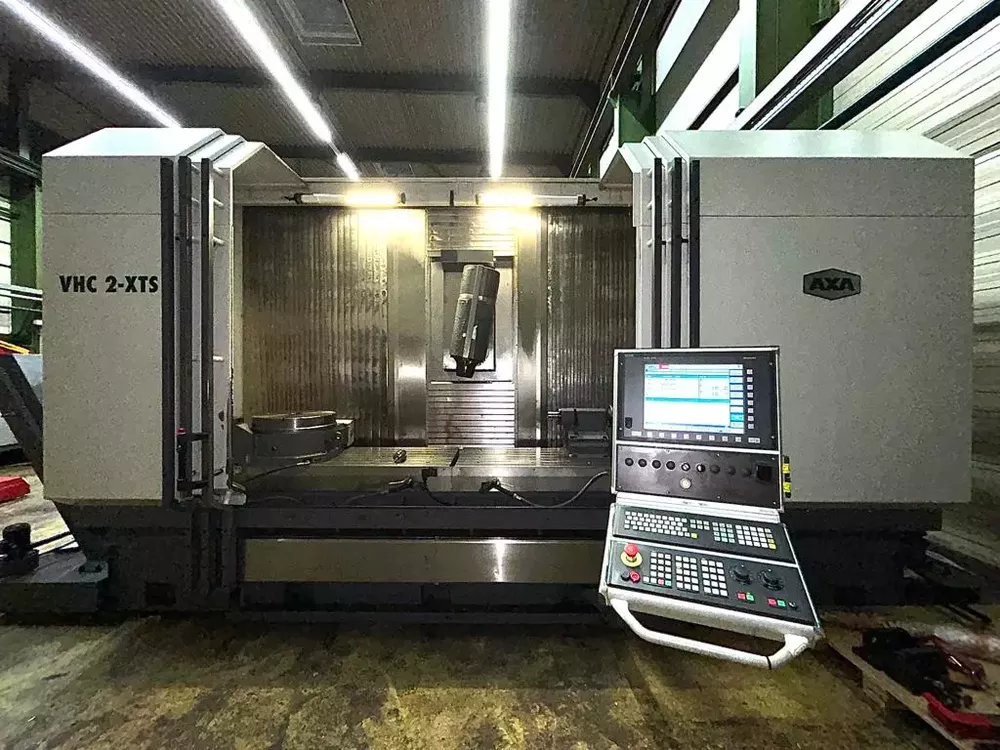

AXA VHC 2 - 1760 XTS Universal Machining Center 5 Axis

Rapid traverse X 40 m/min
Rapid traverse Y 40 m/min
Rapid traverse Z 30 m/min
X travel 1760 mm (2 x 630)
Y travel 600 mm
Z travel 800 mm horizontal / 770 mm vertical
B axis ±100° hydraulic clamping, infinitely interpolating
Number of axes 5
Control Siemens 840D ShopMill

Spindle speed 30 – 6000 RPM
Spindle motor 30 kW
Spindle torque 143 Nm
Spindle taper SK 40

Tool changer capacity 36
NC rotary table AXA RTA 4L-520
Faceplate diameter 520 mm, vertical and horizontal setup
Tailstock manual, center height 280 mm
Machine weight 12000 kg
Machine dimensions 5.2 x 3.4 x 3.3 m

Features / Options / Equipment
Through spindle coolant 30 bar
Chip conveyor left discharge with integrated 200 l coolant tank
Coolant system
Coolant tank 400 l
Probe 3D Renishaw RMP 60 with RMI wireless receiver
External coolant with air or emulsion selectable
Direct measuring system Heidenhain
Operation mode 4
Hardened flat guides
Counter guides with Turcite coating
Renewed sliding coating on X/Y base carriage in 2022
