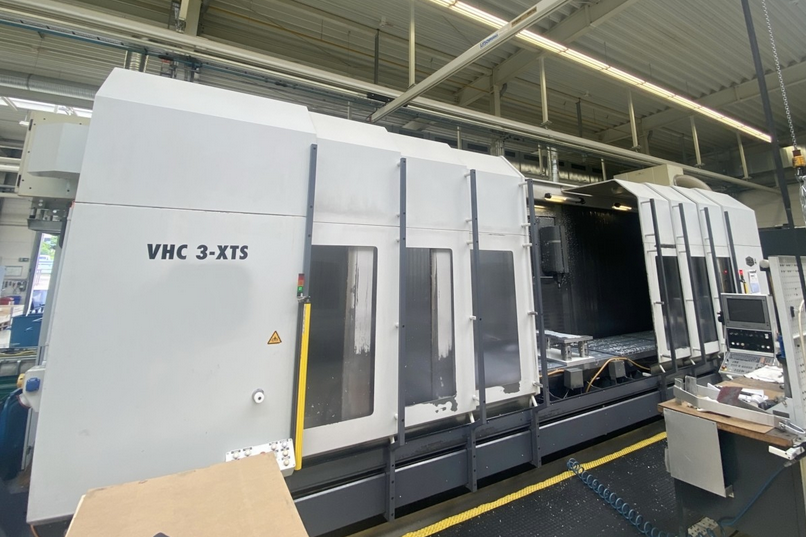

AXA VHC 3 6000 XTS 3 Axis

AXA VHC 3 6000 XTS
2009

Control: iTNC 530 C Heidenhain
X-travel: 6000 mm
Y-travel: 900 mm
Z-travel: 950 mm
Distance spindle nose to table horizontal: 250 – 1200 mm
Spindle speed range: 30 – 12000 rpm
Main spindle power (40% ED): 30 kW
Max spindle torque (40% ED): 143 Nm
Spindle swiveling range: ±100°
Indexing increment: 0.001°
Spindle front bearing diameter: 65 mm
Tool taper: HSK A 63 DIN 69893-
Table surface area: 6950 x 900 mm
Number of T-slots: 6
T-slot width: 14 mm
T-slot spacing: 160 mm
Max table load: 1200 kg
Tool positions: 48
Tool change time (tool-to-tool): 6 sec
Tool change time (chip-to-chip): 11 sec
Max tool diameter: 85 mm
Max tool diameter with free neighboring slots: 135 mm
Max tool length: 400 mm
Max tool weight: 8 kg
Rapid traverse X/Y/Z: 40 / 40 / 30 m/min
Feed rate range X/Y/Z: 1 – 9999 mm/min
Feed force: 9 kN
Total power requirement: 55 kVA
Machine weight: 26000 kg
Machine dimensions: 10.0 x 5.0 x 3.5 m
1-axis NC swivel head with hydraulic clamping
Direct linear measuring system
Oscillating operation with pendulum stroke
800 L coolant tank
Automatic sliding doors
2x manual swivel rotary table axis via external setpoint
4th axis AXA RTA 2-300, 300 mm faceplate, 200 mm center height
3D probe Renishaw OMP 60
Tool breakage detection via Blum Micro Compact laser
Auto power off via key switch
Spindle cooling with cabinet heat exchanger
Preparation for 2 external pick-up magazines
Chip conveyor
Electronic handwheel
2x exhaust fans
Partition wall
2x spray guns
Through-spindle coolant max 40 bar
