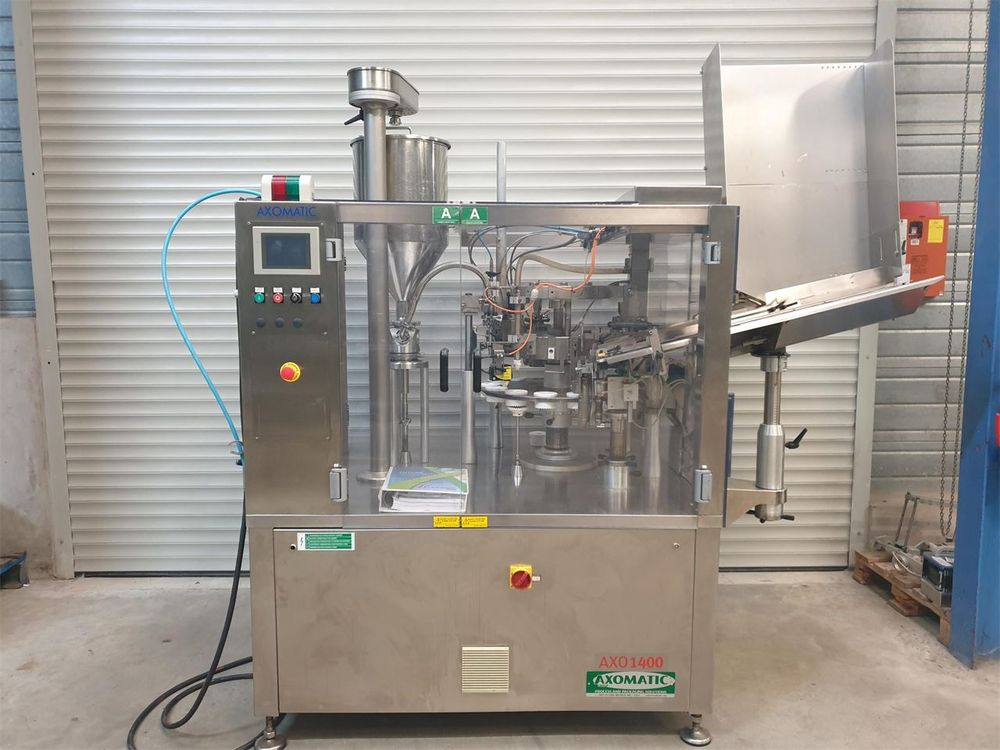

Axomatic OPTIMA 1400 AXO

Filler / plastic and laminate tube filler and sealer

Weight : 1250 kg
Dimensions : (L x W x H) 2.50 x 1.40 x 2.30 M
Automatic dosing and sealing machine for plastic tubes.

Equipped with:
Tube feeding via a loading magazine.
Tube loader dimensions: 650 x 800 mm.
Tube tilting and insertion station into the hopper.
14-cup tray.
The hopper is a single, interchangeable part.
Tube spot centering station using a photocell.
Single-nozzle dosing station equipped with a drip cutter.
Hot air tube sealing station with variable data marking.
Tube top cutting station.
Automatic discharge station for the finished tube.
General drive via a variable-speed motor.
Control panel with touchscreen buttons.
"Green box" refrigeration unit for closed-loop cooling water circulation.
Protective guards with safety features.
Stainless steel frame.

Current equipment:
Dispensing piston. Dispensing capacity: 5 to 50 ml
Tube format diameter: 24 mm.

Capacity:
Tube diameter: 10 to 50 mm
Dosing: 3 to 250 ml depending on the piston diameter.
Maximum tube length: 250 mm.
50-liter hopper.
Maximum production: 5,000 tubes/hour.
Total electrical power: 7 kW
Maximum compressed air pressure: 8 bar
Maximum water pressure: 3 bar.
400 V - 50 Hz - 75 dB.

Refrigeration unit dimensions:
Length: 0.80 m - Width: 0.50 m - Height: 1.00 m - Weight: 118 kg
