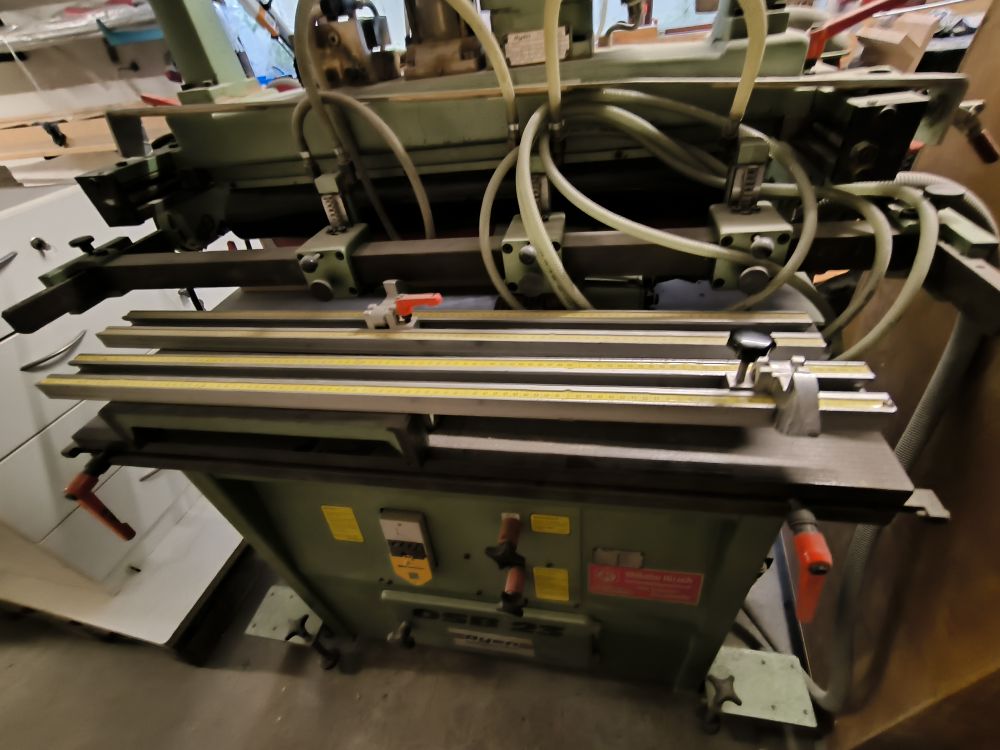

Ayen OSB 23

Dowel drilling machine
Used machine

Features and technical specifications:
- 23-spindle drilling head (32 mm pitch, for cabinet and furniture construction)
- Pneumatic clamping cylinders for workpieces
- Continuously adjustable depth stops
- Adjustable stop ruler with scale
- Solid work table with side supports
- Quick-change drill bushings for various drill diameters
- Foot pedal control for pneumatic actuation
- Drill spindles: 23, 32 mm pitch
- Maximum drilling depth: approx. 65 mm
- Drill diameter: 2-35 mm
- Motor power: 2.2 kW
- Speed: ~ 2800 rpm
- Compressed air connection: G 1/4
- Compressed air consumption: approx. 7 l/cycle
- Power supply: 380 V, 50 Hz
- Work table: approx. 1000 × 350 mm
- Dimensions (L × W × H): approx. 1200 × 800 × 1200 mm
- Weight: 490 kg
