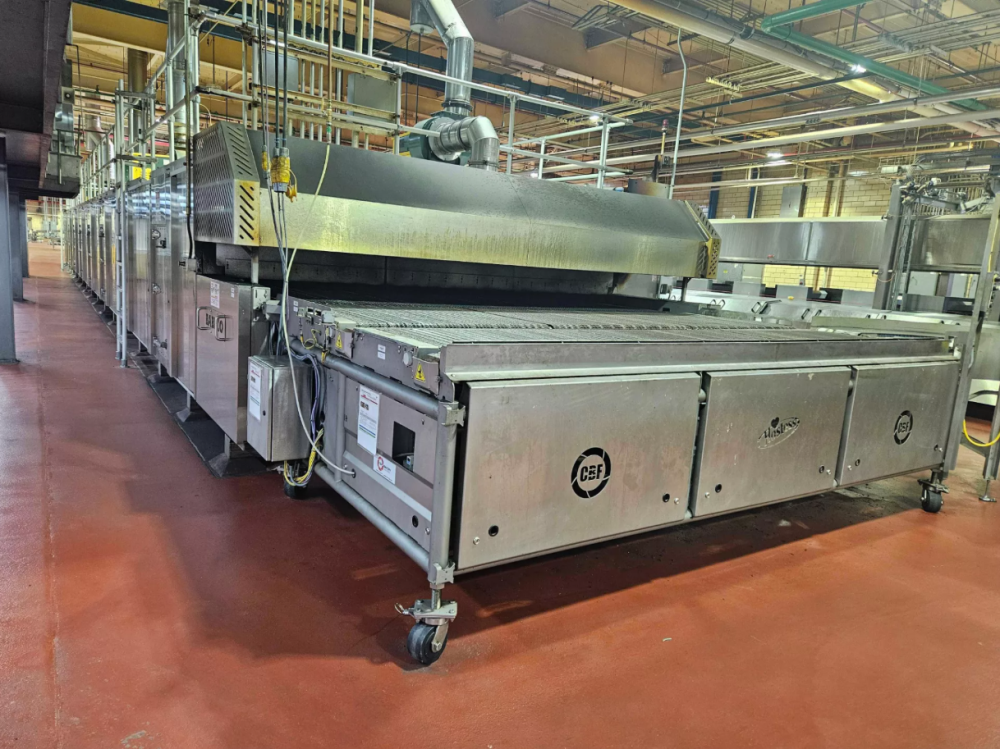

Babbco A-148-86 Direct Fired Tunnel Oven w/ Loader and Unloader

Max Energy Input: 8.0 MM BTU
Natural Gas
Nominal Baking Chamber: 86' Length x 148" Usable Width
8 Heat zones ( 4 Top, 4 Bottom)

Zone 4: 15 burners: 5 top, 10 bottom
Zone 3: 15 burners: 5 top, 10 bottom
Zone 2: 18 burners: 6 top, 12 bottom
Zone 1: 18 burners: 6 top, 12 bottom

Burners: 66 Flynn Ribbon Type Burners, Max BTU/HR 150,000 per burner
Turbulator System: 4 Zones
Manufactured Date: April 2021
Serial Number: 20465-000-111320
Loading Conveyor 36 wide x 156 Length
1x1 Mild Steel Heavy-Duty Flatwire Oven Conveyor Belt: 150 wide x approximately 93 feet length
Interior clearance 5.5 inches from belt to ignitor
Discharge clearance 3.5 inches
Discharge conveyor
3 belts of 50 wide x 36 Length
3 belts of 50 wide x 26 Length
Pan Takeaway Conveyor: 2 belts 4.5 wide x 160 Length
Overall Dimensions: 110 feet x 210 inches wide x 125 inches Height
Modular Design: Comes apart in 13 sections, currently welded and bolted together.
