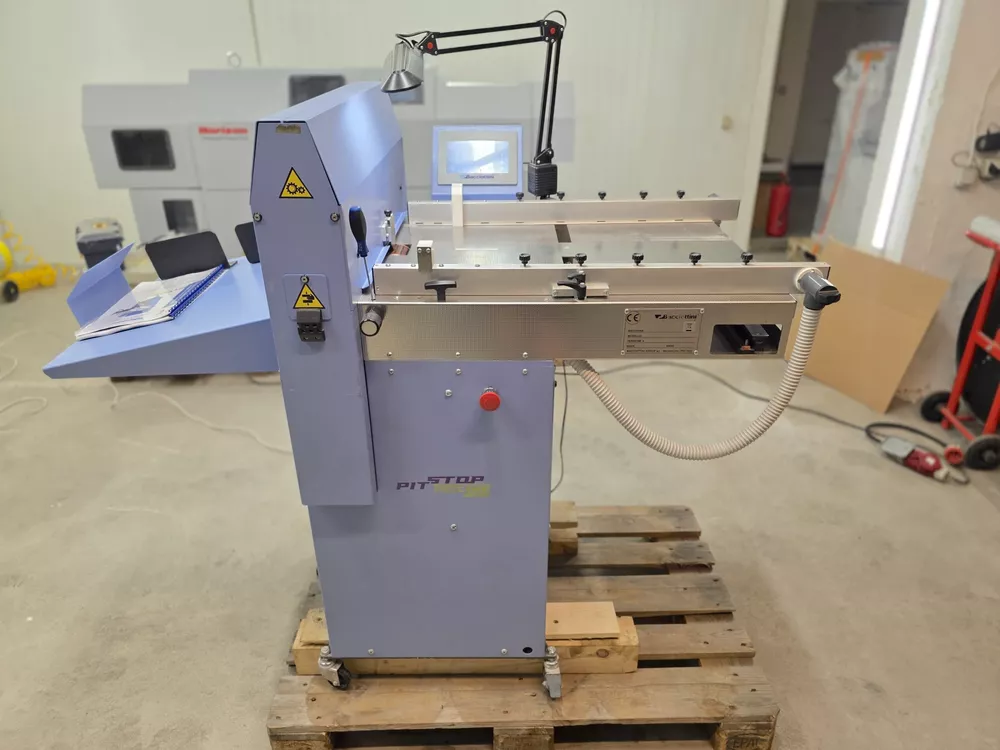

Bacciottini Pit Stop DG Line 8000

Creasing
Colour Touch Screen
Creaser High Speed
The seven-inch colour touchscreen enables the device to print at speeds of 8,000 sheets per hour (A4 single fold).
It is the most efficient creasing and perforating system on the market, solid construction.
The device is fully functional
Vacuum feed, non-stop with the possibility of refilling material while working.
Built-in compressor

Technical specifications:
Size Min / Max: cm 8×10 / cm 50×70 (with optional extension feeder 50×85 cm)
Sheet weight: 80 a 400 g.s.m.
Programs: 20 programs with 20 operations for each program
Maximum number of creases on the sheet: 20
Min. distance creasing: 0,1 mm
Distance to the next creases: 0.1 mm
Setting accuracy: 0.1 mm

Production: A4 with 1 crease 8,000 sheets per hour
Power supply: 230 Volts 50 Hz single phase
Power requirement: 2 Kw
Net weight: 180 Kg
Size :150x80x120 cm

Optionals perforating kit 2/1 – 3/1 – 4/1; standard creasing kit
The perforating creasing PIT STOP DG LINE 8000 is the natural evolution of version 6500.
Dedicated to the print on demand and digital printing has great accuracy.
The size is 50×70 and can crease up to 400 g.s.m.
