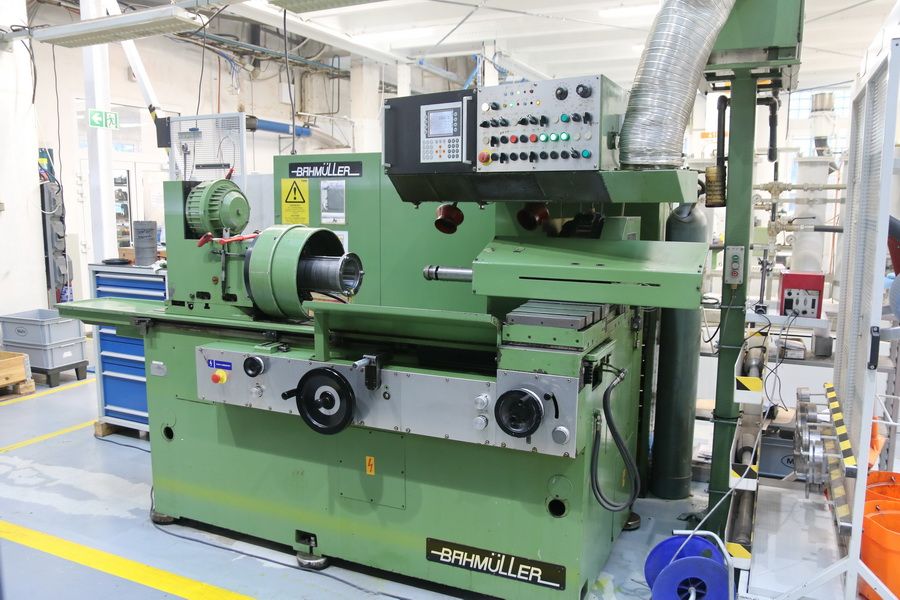

Bahmuller JES 12

Internal Diameter Min: 10 mm
Internal Diameter Max: 250 mm
Grinding Depth: 400 mm
External Diameter Max: 380 mm
Swing Diameter: 390 mm
Table Travel Max: 550 mm
Table Stroke Min: 2 mm
Table Speed: 0 – 10 m/min
Rough Adjustment: 18 mm
Fine Adjustment: 4 mm
Max Workpiece Weight: 100 kg
Spindle Head: B6 DIN 55021
Spindle Speed: 15 – 1500 rpm
Pivoting Angle: ±30°
Spindle Bore: 50 mm
Spindle Motor Power: 2 kW
Rapid Traverse: 0 – 250 mm/min
Stroke: 70 mm
Grinding Power Requirement: 3 kW
Machine Weight: 2.7 t
Machine Dimensions: 3000 x 3000 x 3200 mm
New Control Installed July 2015
Exhaust Fan Fibaron
Fire Extinguishing System Deugra
Paper Band Filter Polo
