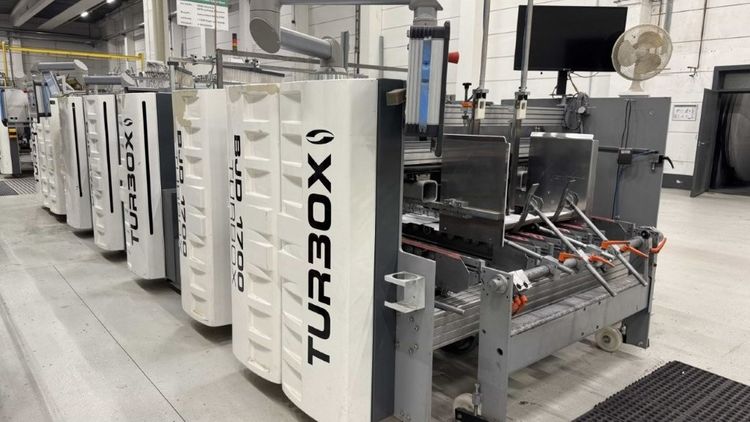

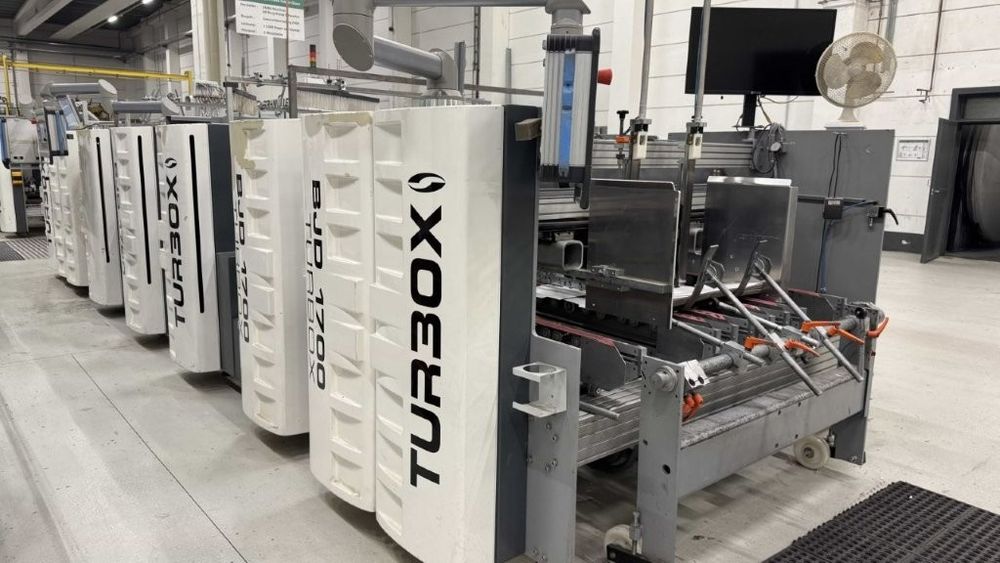

Bahmuller Turbox BJD 1700

Longitudinal seam boxes

Crash-lock bottom boxes

Crash-lock bottom boxes with partition

Multi-chamber boxes

4-point boxes

4-point boxes with lid

6-point boxes with outside folding

6-point boxes with inside folding
Corrugated board 800–1500 g/m² (optional 250–800 g/m²) A, B, C, E, F, „EE“, BE, BC – flute types
Maximum blank size: 1700 × 1200 mm
Minimum blank size: 380 × 160 mm
Minimum trim size: M 185 (125)* × 160 mm
Mechanical speed: 250 m/min (depending on box geometry and material)
Total power requirement (BJD without Boxflow-Packer): approx. 30 kVA
Total power requirement (with Boxflow-Packer): approx. 47 kVA
Electrical connection: 400 V / 50 Hz (3-phase)
Passage height: 850 mm
Air consumption BJD 1700 (at 6 bar): 15 Nm³/h
Air consumption Boxflow-Packer (at 6 bar): 15 Nm³/h
Machine weight (BJD 1700 without Boxflow-Packer): approx. 13.5 t
Machine length / width (without Boxflow-Packer): approx. 22,380 mm × 2,700 mm
