Bahmuller ZH 56

Double Head Folder Gluer
Machine Dimensions:
Length: 15 m
Width: 8 m
Height: 5 m

Maximum Board Size:
Unfolded blank: 7,000 x 2,400 mm
Folded box: 3,500 x 2,400 mm

Technical Data (according to the drawing) :
Maximum blank length (HL): 7,000 mm
Minimum blank length (HL): 1,155 mm
Maximum blank width (ZB): 2,400 mm
Minimum blank width (ZB): 530 mm
Maximum crease height (RH): 2,400 mm
Minimum crease height (RH): 300 mm
Maximum crease length (RL): 1,600 mm
Minimum crease length (RL): 410 mm
Maximum slot width (RB): 1,340 mm
Minimum slot width (RB): 150 mm
Glue flap width (LA): 35 – 50 mm
the machine appears to be a heavy-duty corrugated box folder gluer for large-format packaging.

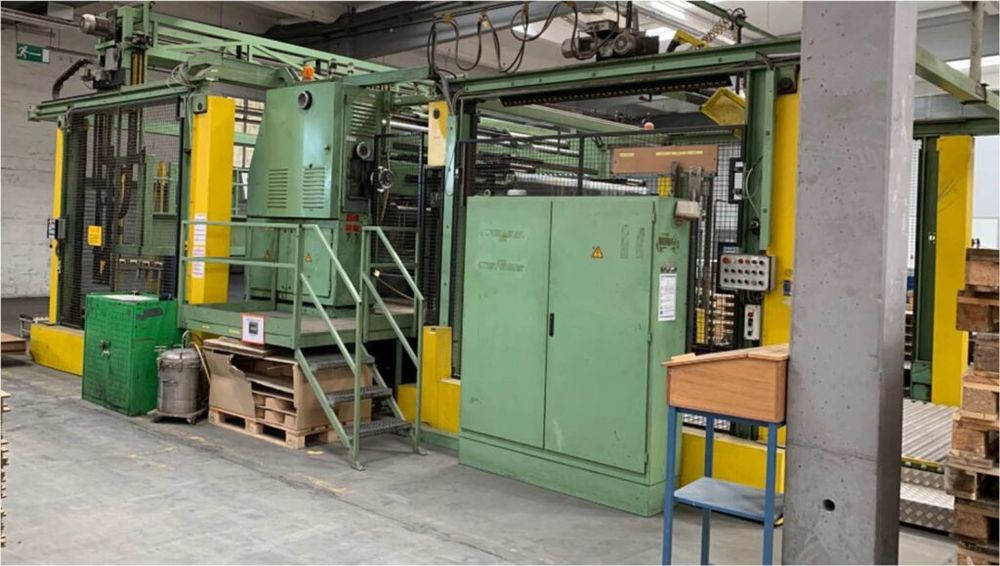

Visible equipment:
Bahmüller overhead gantry handling system
Double-head folding and gluing station
Heavy-duty roller conveyor system
Automatic blank transport system
Large safety enclosure with guarding
Hydraulic/pneumatic pressing section
Automatic stacking and transfer area
Suitable for large corrugated board packaging
Industrial control cabinets
Designed for oversized packaging production

Typical Applications :
This machine is suitable for producing:
Heavy-duty corrugated boxes
Pallet boxes
Industrial packaging
Furniture packaging
Appliance packaging
Automotive packaging
Large-format shipping cartons
Export packaging
