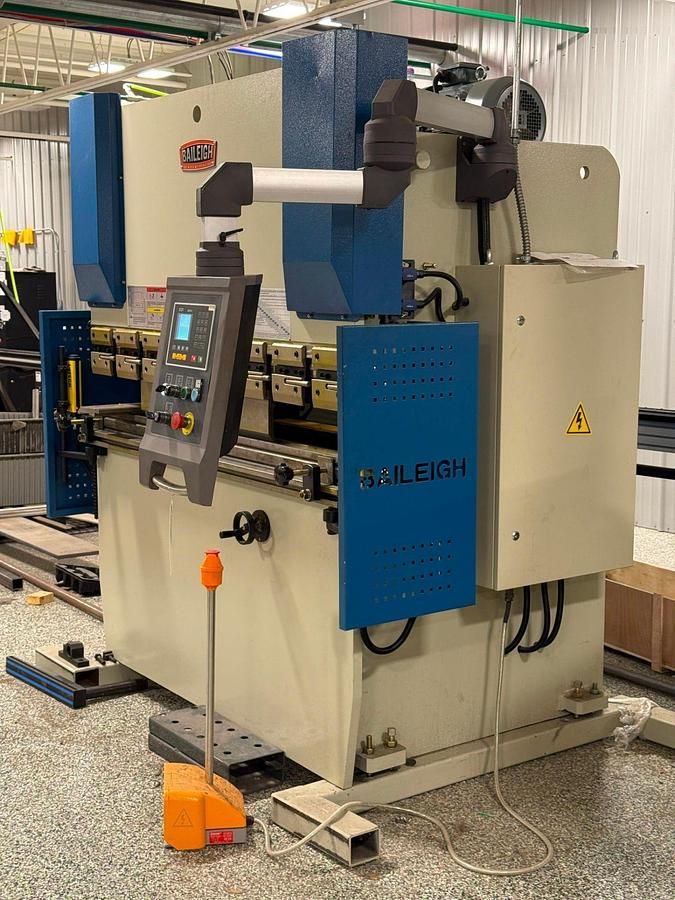

Baileigh BP-3305CNC 33 TON

Table Length: 63"
Distance Between Housings: 51.3"
Throat Depth: 7.87"
Stroke: 3.9"
Distance From Table to Ram: 11.8"
Adjustment of Ram Travel: 3.1"
Approach Speed: 3.5"/sec
Working Speed: 0.394"/sec
Electrics: 220V / 3 PH / 60 Hz
Main Motor: 7.5 HP
Hydraulic Reservoir Capacity: 28 Gal
Shipping Weight: 5,100 lbs
Footprint Dimensions: 97" x 91" x 82"

ESTUN E21 CNC Control
Safety Light Curtains
Foot Pedestal Control
21" Backgage Range
63" 4-Way Bottom Die
