Bandera, OMV Co-Extrusion Line with thermoforming CMG grinder

Complete Co-Extrusion Bandera INLINE with
OMV thermoforming machine for the production of plates

consisting of:

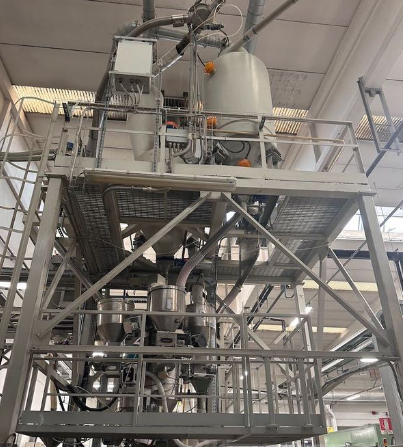

Dosing unit from Engiplast. Gravimetric.
With this system the line is receiving the material directly from
Silo's and it is possible to get other materials from
Big-Bag as well with screw from side silo.
The gravometric system can get 4 different materials.
Before the final material comes on extruder, is moved by
an Engiplast system which keep the pressure directly on
the screw of extruder stabilize.
In this way the extruder will never run without material and
control the pressure on the screw.
Main extruder Bandera (No. 17183, year 1997, Blasia 220, GR-XP 150 with
The Dirve of from ABB type DMG 225S with 440 V, 521 A, and 213 kW
compelte overhaued in 02.08.2022. Gear is from Flender type KS 50,
i=29:1. Screw diameter 120 mm and L/D 33. 5 air blowing cooling zones and
heating zones. BT Plast Screen Changer hydraulic and automatic with
pump.
Co-Extrusion Bandera (No. 17188, year 1997) Blasia 220, GR-XP 150, with
the drive on is ABB Type DMP 160-4M, 52 kW, 460V, 125.2A.
Screw diameter 60mm. BT Plast Screen Changer hydraulic and
automatic with pump.
Maag Melt pump
Feed Box for ABA system
Flat Flex Lip Die 1400 mm
OMV Thermoforming machine included with calander and
Tool manufacture from company Thermostampi
4x Chilling units for calander and tool
DM Pack packaging unit and from Tecno Pack to pack the plates in foil and
with SmartDateX40 markek-imaje to print on the PE packaged pieces the
QS code.
Web-Grinder TRIA type: 1200/TR-NX, year 1997 and M.Nr. 33.4739.97 with
blower and Silo to return the flakes directly into the mail extruder
Control panel with Siemens S5, SEW Frequency control, ABB Drives.
