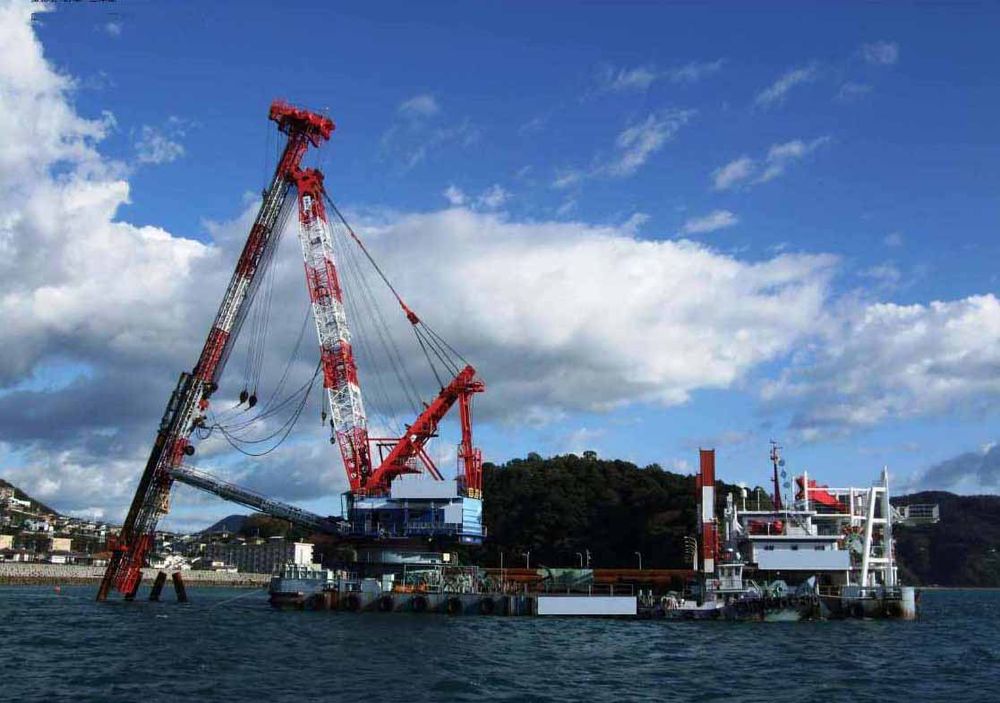

BARGE/WORKING VESSEL LEADING-EDG 250T (MAX LENGTH OF PILE: 60M )

BARGE/WORKING VESSEL
2004

LOA: 55.00m
Breadth: 22.00m
Depth: 3.80m
Capacity: 250t
Crew: 12
Wastewater capacity: 2165t
Operating winches: Electrically operated hydraulic
Bow winches: 12t / 61x12 / 24m/min double x2
Bow winches: 12t / 61x12 / 24m/min single x2
Stern winches: 12t / 61x12 / 24m/min single x4
All-purpose winches: 2t / 1.5x15 / 30m/min single x2
Spud lift device: 1200mm x 28m 60t/30t fixed type x3
Spud lift device: 1200mm x 20m 60t/30t fixed type x1
Main generator: 220kVA (363kW / 1800RPM anti-noise parallel) x2
Backup generator: 90kVA (72kW / 1800RPM anti-noise portable) x1
Backup generator: 47kVA (36kW / 1800RPM anti-noise portable) x1
Crane type: SKK-2800DT-L
Crane rated load: 250t total revolving
Crane first auxiliary: 120t
Crane second auxiliary: 50t
Crane motor: Mitsubishi S6A3-MPTA 478kW / 1900RPM
Max jib length: 49m (20.5m + 4.5m + 6m + 9m + 9m)
Auxiliary hoisting: 60m above water
Main winding drum: 24t x 57m/min x1
First auxiliary drum: 15t x 80m/min x2
Second auxiliary drum: 15t x 80m/min x1
Miscellaneous drums: 15t, 7.5t, 3t x8
Taggar winches: 1.2t x2
Winding up speed: 0–4.5m/min (250t)
Winding down speed: 0–5.7m/min (250t)
Raising speed: 0–6.6m/min
Rotating device speed: 0–1.7 RPM
Operating method: Air pressure manual
Pile driver max pile length: 60m
Hydraulic grasping fork: 3 sections, extend-retract, hydraulic
Hydraulic grasping fork min length: 10.17m
Hydraulic grasping fork max length: 20.23m
Hydraulic hammer types fixable: IHC S200, IHC S280
Current hydraulic hammers: NH115B, NH150B
Max hammer diameter: 1700mm
Max hammer weight: 40t
