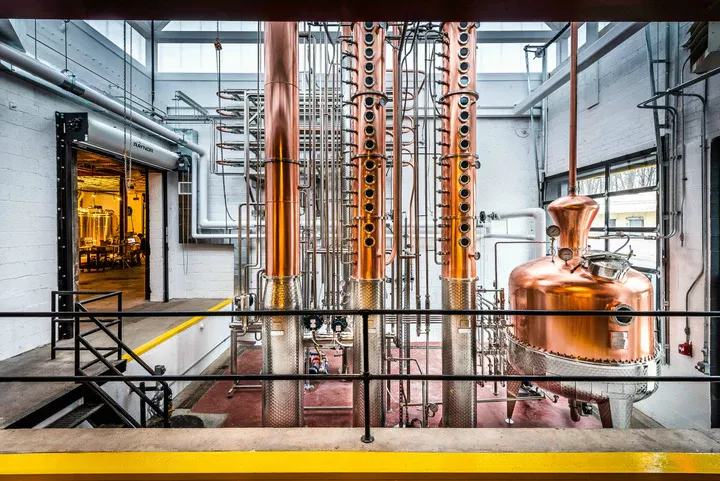

Barison Continuous Column and 2,000L Batch Still

CONTINUOUS capacity 7,500 liters

Stacked stainless/copper column
Average cycle 5hrs, average steam consumption 250g/hr

Stainless steam kettle with sparger, flow meter, level control, pump, and pneumatic drain

Stainless stacked column includes 15 stainless sieve plates, 1 stainless de-entrainment plate, and feed pump w/ flow meter

Copper stacked column includes 3 copper bubble "caps" plates, copper connection to exchangers, copper condenser tube, stainless cooling coil, spirit safe, and rotameter

Heat exchanger for pre-heating wash

BATCH capacity 2,000 liters, w/ pot & dual rectification column design

Copper pot still includes manometer, copper onion, pneumatic discharge, explosion proof agitator, and bypass to condenser

Dual copper stack rectification columns each with 15 copper plates, 15 sights, 15 CIP balls, 15 discharge valves

Pot system also includes dephlegmator, bypass from first rectification column to condenser, stainless cooling column, manual head, tail, and reflux valves

Allen Bradley control center with touchscreen
