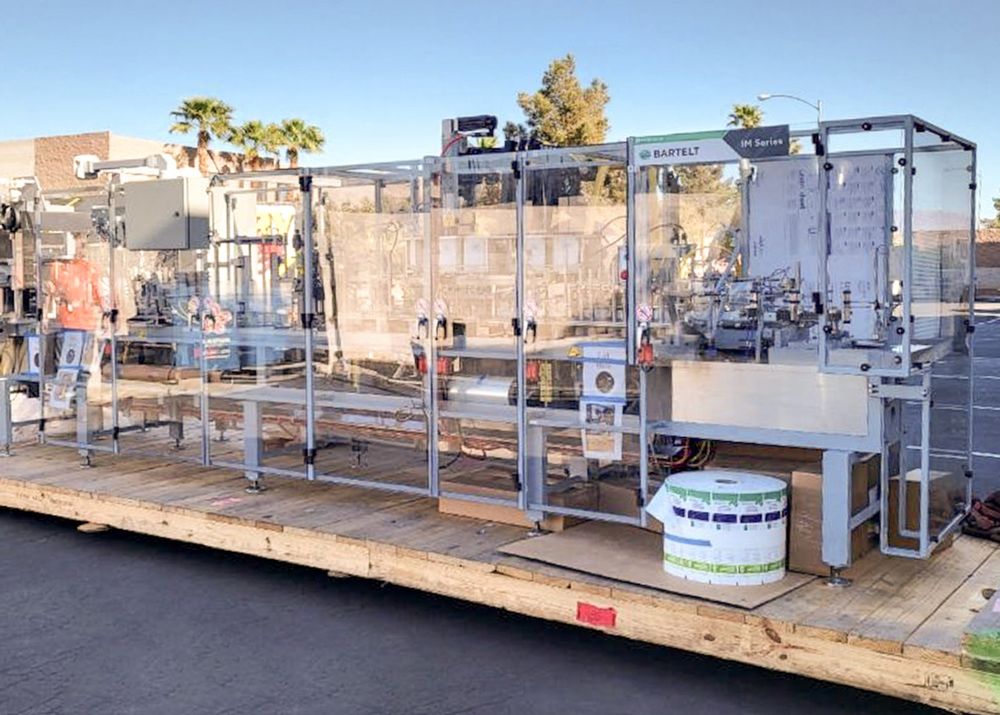

Bartelt IM-7

Capabilities Pouch Formats: Pouch Width: 2.00” – 5.75” (51 – 146 mm)
Pouch Height: 2.00” – 9.50” (51 – 241 mm) Gusset: Up to 2.25” (Up to 64 mm) Maximum
Pouch Weight: 16 oz (455 g)

Max Mechanical Speed (poucher only): 100 cycles/min Packaging Material Specifications Film Web Maximum Web Width: 21.00” (533 mm) Roll Core ID: 3.00” (76 mm) Maximum Roll OD: 24.00” (457 mm)

Utility Requirements Electrical Power: 480 VAC / 3-Phase Frequency / Load: 60 Hz / 40 Amps Control Voltage: 24 VDC Water
(Cooling – application dependent) Required for certain film structures and pouch configurations

Flow: 2 gpm (7.6 L/min) Temperature: 32°F – 50°F (0°C – 10°C) Compressed Air Consumption: 20 SCFM (565 L/min) Pressure: 80 PSI (6 bar)
