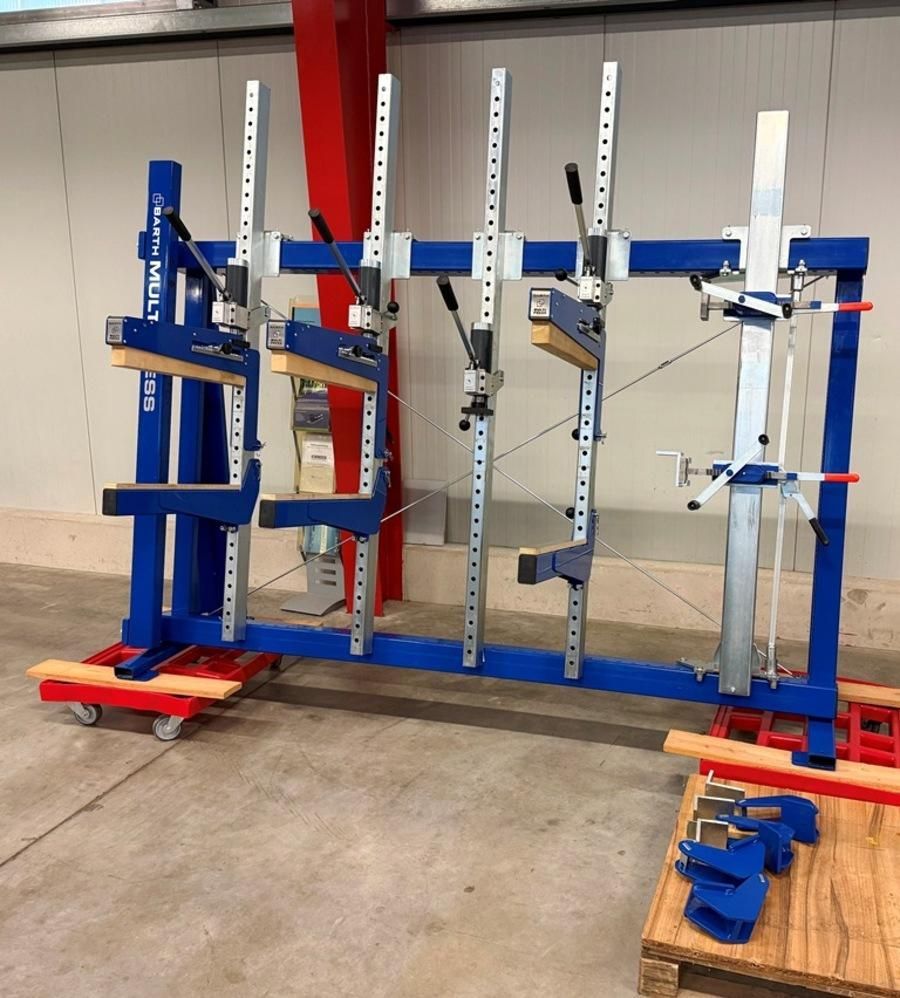

Barth MULTI-Presse RP 2501

Gluing clamp BARTH MULTI-Presse RP 2501
Used mint condition

Maximum clamping dimensions:
- for gluing approx. 2400 x 1580 mm LH
- for frame approx. 2110 x 1580 LH
- for carcass approx. 2110 x 1370 LH

Base frame with 90° stop
4 pressing units, each with 1 manual hydraulic cylinder
2-stage pump system: quick stroke / pressure stroke
Stroke 100 mm
Maximum pressing force 2000 kg

Side pressure device RPW/RP, with 2 rack and pinion gears
- Stroke 140 mm
- Self-locking
- Maximum pressing force approx. 1000 kg

3 carcass top clamps
3 carcass supports
Mitre gluing device, 4 angles
Base frame powder-coated, press arms galvanized
Incl. technical documentation
Transport dimensions approx. 2600 x 900 x 2300 mm LWH
Weight approx. 500 kg
