Battenfeld 1500mm Coextrusion PP/EVOH/PP barrier film line

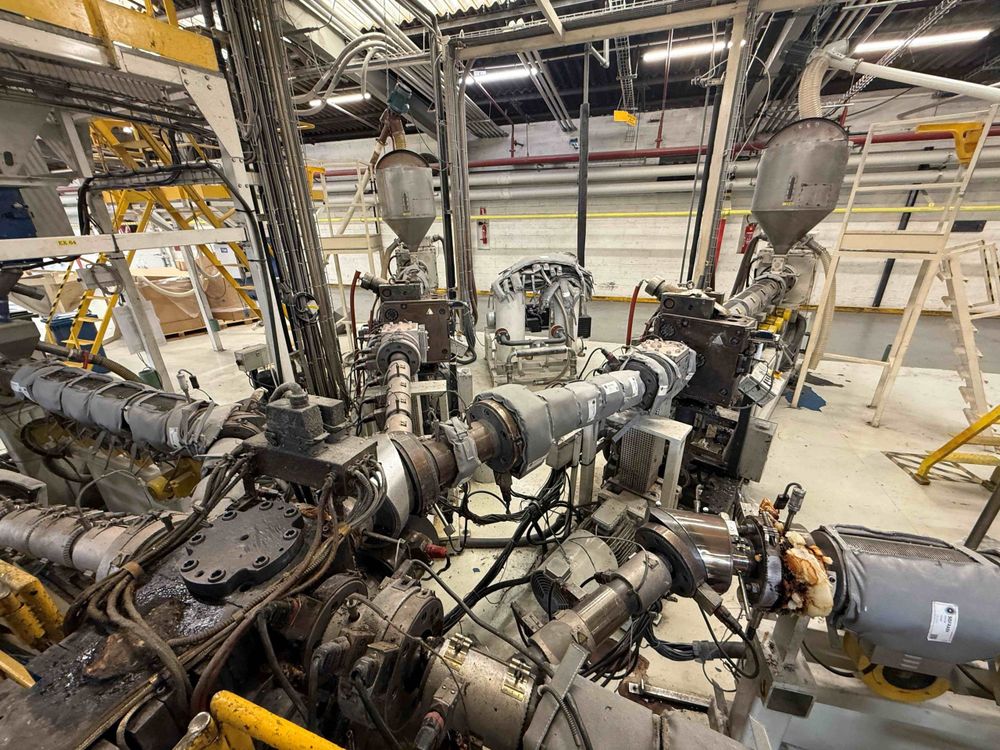

1500mm wide Battenfeld coextrusion PP/EVOH/PP barrier film line
with 75/75/60/60/45/45mm extruders, feedblock ACDEFEDCB config. 900kg/hr 2006
TSM multi component gravimetric feeders Optimix for each pair of extruders with
hopper loaders.
75mm primary extruders x 2 with up to 800rpm screw speed.
Gneuss continuous screen changers. Gear pumps motors with drives.
60mm coextruders x 2 with standard screw speeds. Dc motors
45mm coextruders x 2 with standard screw speeds dc motors
Battenfeld up to 9 layer coextrusion feedblock with variable pressure control.
ACDEFEDCB or ACCEFEDDB configuration.
Approx 1600mm wide flex lip multilayer die with auto hear bolt connected to
scanning system for closed loop nip control.
1800mm wide Battenfeld 3 roll polishing stack with independent roll drives.
Additional cooling rolls. Optical inspection system. In line cutting.
2 roll haul off with slitting knives
Up to 4 station winding system including centre slit.
Siemens integrated touch screen control.
