Battenfeld, Cincinnati Complete extrusion line for PVC pipes

Complete extrusion line for PVC sewage and pressure pipes Ø 63 - 200 mm

3-component dosing system incl. 2 x hopper weighing system ConPro
(YOM: 2015)
Material feeding mounted on steel platform for 3 components:
Dryblend, recycling material u-PVC and freeze mix
incl. hopper scale TW 1000 and TW 200 for main & secondary component
incl. spiral feeders (2 x MA 70 C und MA 55 C) for all components

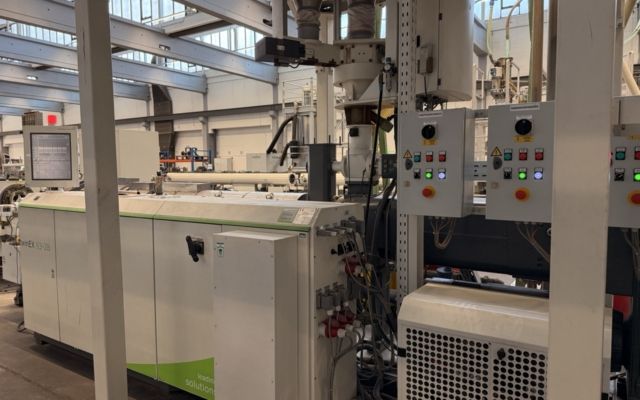

Parallel twin screw extruder battenfeld-cincinnati twinEX 93-28D
YOM: 2015, Running hours: approx. 27.300 (Status: September 2025)
Screw diameter: 93 mm, L/D = 28
Motor: 75 kW (AC-drive)
Output rate: up to 650 kg/h (rigid PVC)
Screw with molybdenum coating
(NEW in 2023 with 2.245 running hours only)
Barrel with heating and air cooling (also NEW in 2023)
Gear box (NEW in 2020 with 9.250 running hours only)
Vacuum pump for degassing incl. vacuum filter
Number of heating zones: 12 + 1 pcs. for tooling + adapter
Control system: BCtouch
Air condition for switch cabinet

Pipe head battenfeld-cincinnati spider 250 on top of mounting trolley
(YOM: 2015)
Capacity basic head: 75 – 700 kg/h (rigid PVC)
Pipe diameter (OD): 75 – 250 mm
incl. mandrel and die sets for dimensions:
63 x 4,7 mm / 75 x 5,6 mm / 90 x 6,7 mm / 110 x 8,2 mm / 125 x 3,7 mm
140 x 109,4 mm / 160 x 11,9 mm / 200 x 5,9 mm
Additional mandrel for dimensions:
63 x 3,0 mm / 75 x 3,6 mm / 90 x 4,3 mm / 110 x 5,3 mm / 110 x 3,2 mm SN8
110 x 3,0 mm SN4 / 125 x 3,2 mm SN4 / 140 x 6,7 mm / 160 x 7,7 mm
160 x 4,7 mm SN8 / 160 x 4,0 mm SN4 / 200 x 4,9 mm

Vacuum calibration tank KUAG VK 250/1,5 + 4,5 (YOM: 2004)
2-camber calibration tank 6 m long
incl. calibration sleeves for pipes 63 - 200 mm
executed with 2 water- and vacuum pumps

Vacuum calibration tank KUAG VK 250/6 (YOM: 2004)
2-camber calibration tank 6 m long
incl. calibration sleeves for pipes 63 - 200 mm
executed with 2 water- and vacuum pumps

Caterpillar haul-off KUAG 250/4 E (YOM: 2006)
Pipe range: 48 - 267 mm
Number of caterpillars: 6 pcs., Contact length: 1.450 mm
Haul-off speed: 0,1 – 9 m (at 16 kN haul-off force)

Planetary saw SICA TRS/SY/CNC 250R incl. chamfering (YOM: 2014)
Pipe range: 32 - 250 mm
Saw unit designed as planetary saw with cutting discs and a milling cutter
for chamfering the pipes up to a wall thickness of 40 mm
incl. swarf exhauster

Belling machine SICA UNIBELL 2 200 JWE PLUS (YOM: 2015)
incl. gasket inserting unit MASTERFIT 250 IL
Pipe range: 32 - 200 mm, pipe length: 500 – 6.000 mm
2 ovens with IR-SW execution and 1 belling station
incl. belling tools for sewage and pressure pipes
incl. separate water chiller

Palletising machine for pipes LTP 200 (YOM: 2007)
Pipe range: 32 - 200 mm, pipe length: 1.000 – 6.000 mm
Max. pallet dimension (W x H): 1.200 x 1.200 mm

Remark:
The overall length of the extrusion line is approx. 52 m
The line can be seen in production by mutual agreement

Condition: excellent, in very good working condition
