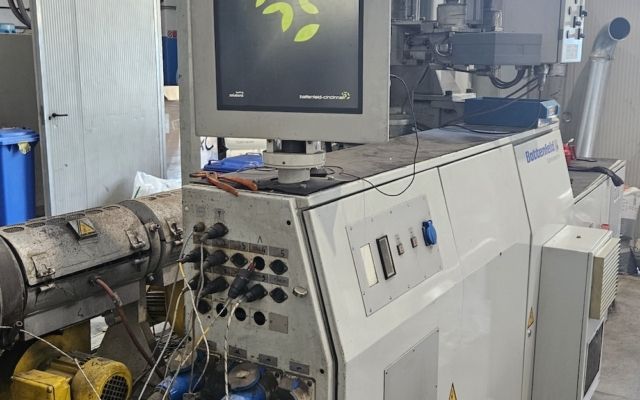

Battenfeld Extrusion line for 3-layer PE-X & PE-RT pipes

Complete Extrusion line for the production of
3-layer PE-Xb-, PE-Xc- and PE-RT-pipes
Year of manufacture: 2001
Pipe range: Ø 14 - 25 mm
Condition: good running condition
Diameters in production: 14 x 2 / 16 x 1.5 / 16 x 2 / 17 x 2 / 18 x 2 / 20 x 2 / 25 x 2.3
Line speed: approx. 35 m/min

Single screw extruder Battenfeld BEX 1-60-30B
Output: 200 kg/h (for PE-X)
AC-Drive
Bi-metallic screw & barrel: 60 mm, L/D = 25 (has been replaced in 2025)
BMCtouch (PC has been replaced by a new one)
Integration of BEX co-extruders
Integration scales and gravimetric dosing unity (DOS-3)
Melt pressure and melt temperature sensor
Material hoppers
Die adaptor

2 x Co-extruder Battenfeld BEX E 30.1 KSY1 x 25D
Output: 18 – 20 kg/h (for EVOH and adhesive)

Die head PE-X-50
Co-Extrusion ring for EVOH and adhesive

Vacuum calibrator V2-63 VA – 9m
Electromotive length adjustment
Water pressure & vacuum measuring and regulation

Cooling length K 63 VA – 27 m
2 x circular pump (each 1.1 kW)

Haul-off P 100 BVE
Belt haul-off
Remote control
Length measuring with saw program
Speed control 0 – 10V
Profiled haul-off belts with 2 grooves
Air conditioner for control cabinet

Automation system aurex ERS36 (ERS-M 32) from INOEX
For measurement and control of wall thickness,
flaw detection, signal-surface evaluation,
diameter measurement, eccentricity &
ovalness measurement for 3 single layers
Thermal die head centering
Vacuum control
Ultrasonic signal display
Protocolling of quality & operating data

Gravimetric material weighing & dosing system from INOEX
2 x mono weigher igs.M1 type TW20 – TW1400
1 x Main component igs.D6 type TW 200 – TW1400
2 x Side component igs.D6 type TW20 – TW 350
For granulate materials
Integrated in BMC control

Condition: second hand, fully functional
