Battenfeld, Gloucester Cast extrusion line

Layers : 7
Diameter screw(s) :
4 extruders
4,5” – 3,5” – 2,5” – 2,5”
L:D ratio screw(s) : 30:1
Max. web width :
1550 mmLLDPE (finished)
1650 mm PP (finished)
Max. output :
1300kg/h/ 2,850 p ph (LLDPE)
700 kg/h / 1,525 p ph (PP)

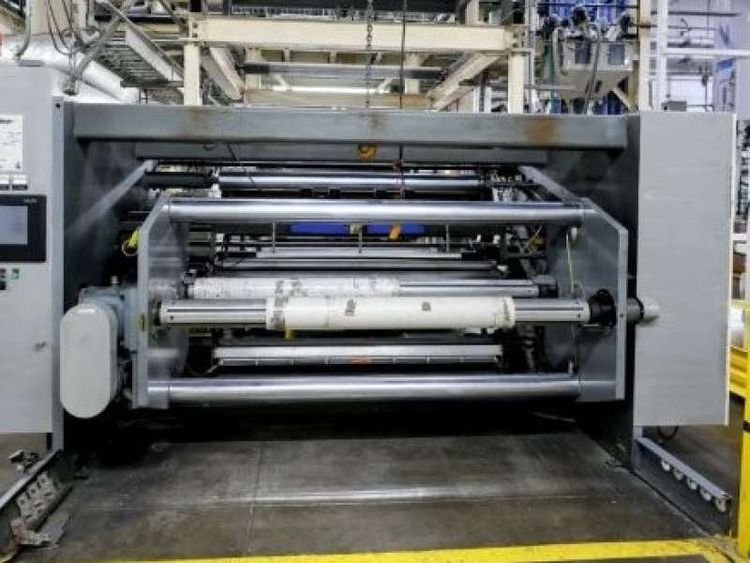

Rewind manufacturer : Battenfeld
Model 1013-S

Materials :
PE, PP
20 – 120 µm

Die manufacturer
: Cloeren
7 layer variable geometry feedblock
Die width : 2050 mm
Cloeren EPOCH lll Autogauge 5.5
Rewind type : Turret
Max. rewind reel diameter : 1058 mm
Number and size airshafts : 3' and 6'
Type of dosing unit : Gravimetric
Thickness measurement : Yes
Beta thickness gauge
NDC model 302-Kr-35
