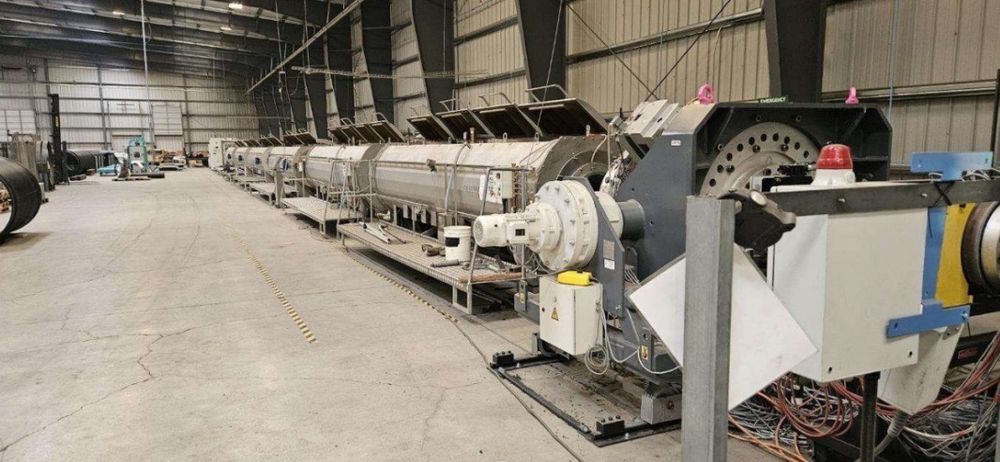

Battenfeld Helix II 630 VFI+FDC Pipe Extrusion Line

Capacity & Pipe Range:
Pipe Diameter: 4″ – 24″ (102 mm – 610 mm)
SDR Range: 11 – 32.5

Extruder & Technology:
Model: solEX NG 90
Line Rates: 1,620 Hg/Hr or 3,564 PPH
Feeders: Sysmetric feeder system with 3 feeders (Main resin, Regrind, Color MB)
Co-Extrusion and Striping Ring
Screen Changer included
Diehead: Standard or Automatic FDC design, adjustable calibration sleeves

Additional Equipment:
Pipe Mandrel with Insulation – Diameter Range 609 mm (SDR9-11) to 508 mm (SDR7-11),
for use with die set DI 610 mm
Extension Set – Diameter Range 355 – 457 mm (SDR7-11)
Pipe Mandrel with Insulation – Diameter Range 219 – 323 mm (SDT7-11),
for use with die set DI 336 mm
Pipe Mandrel with Insulation – Diameter Range 168 – 114 mm (SDR7-11)

Equipped With:
Adjustable Diehead
Sica 630
Sysmetric Feeder System
(2) Vac Tanks & (4) Cool Tanks
