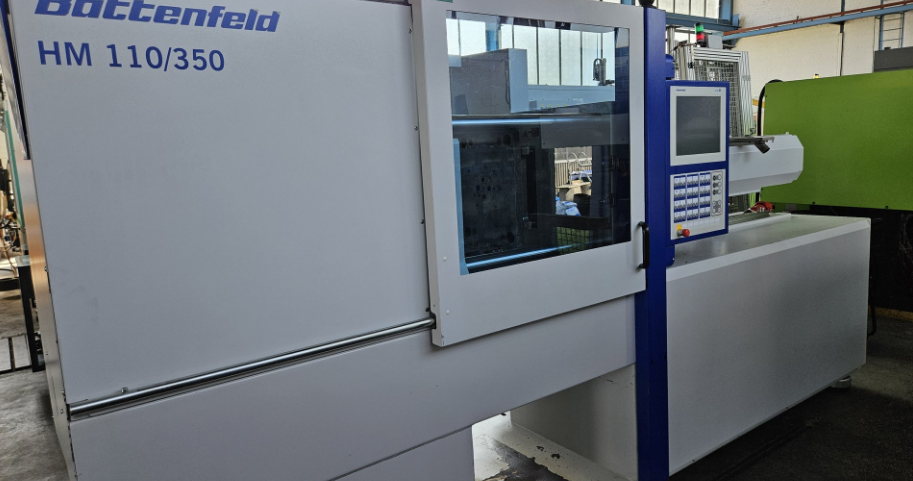

Battenfeld HM 110-350 110 T

Screw diameter: 35 mm
Cycles: 2.8 million
Condition: technically checked & repaired

Technical data closing side
Closing force: 1100 kN
Holmass hxv: 470 x 420 mm
Plate size hxv: 680 x 660 mm
Minimum installation height: 275 mm
Maximum plate spacing: 775 mm
Opening path: 500 mm
Centering movable plate D: 125 mm
Centering fixed plate D: 125 mm

Technical data spray side
Screw diameter: 35 mm
Displacement: 169 cc
Injection pressure: 2083 bear
Screw length: 22 l/d
Screw speed: 397 min
Worm torque: 621 N
Plasticizing stream: 24 g/s hp
Injection flow to the outside: 134 g/s hp
Nozzle path: 250 mm

Dimensions & Weight
Machine dimensions LxWxH: 4.05 m x 1.5 m x 2.1 m
Total weight: 4500 KG

equipment
Screen text German
Screen text English
Screen text French
Screen text Italian
Screen text Polish
CEE socket 16A
Core pull hydraulic 2x
Air valve fixed WAP
Machine without material hopper
Machine without water battery
Leveling elements
EUROMAP 67 Handling interface
Interface for coloring device
Schuko socket 10A
