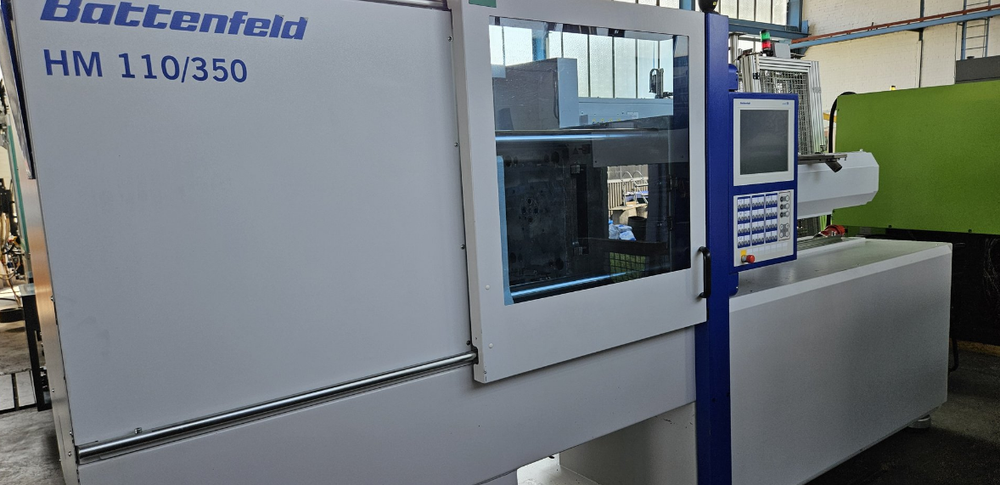

Battenfeld HM 110-350 110 T

controller: UNILOG B6P
year of construction: 2013
operation hours: 31927 h

technical data clamping unit
clamping force: 1100 kN
distance between tie-bars h x v: 470 x 420 mm
size of mould plates h x v: 680 x 660 mm
min. mould height: 275 mm
max. open daylight: 775 mm
opening stroke: 500 mm
centering diameter of moving platen: 125 mm
centering diameter of fixed platen: 125 mm

technical data injection unit
screw diameter: 35 mm
swept volume: 169 ccm
injection pressure: 2083 bar
screw length: 22 l/d
screw speed: 397 min
screw torque: 621 N
plasticising rate: 24 g/s PS
injection rate into the open: 134 g/s PS
nozzle stroke: 250 mm

measures & weight
measures of machine l x w x h: 4.05m x 1.5m x 2.1m
total weight: 4500KG

equipment included
screen text german
screen text english
screen text french
screen text italian
Screentext Multi-Language
screen text polish
CEE-socket 16A
core pulling hydraulically 2x
air valve fixed platen
machine without material hopper
machine without water flow regulator
Anti vibration mounts
interface robot EUROMAP 67
interface for dosing unit
Schuko-socket 10A
Servomotor pump drive Energy-saving drive
