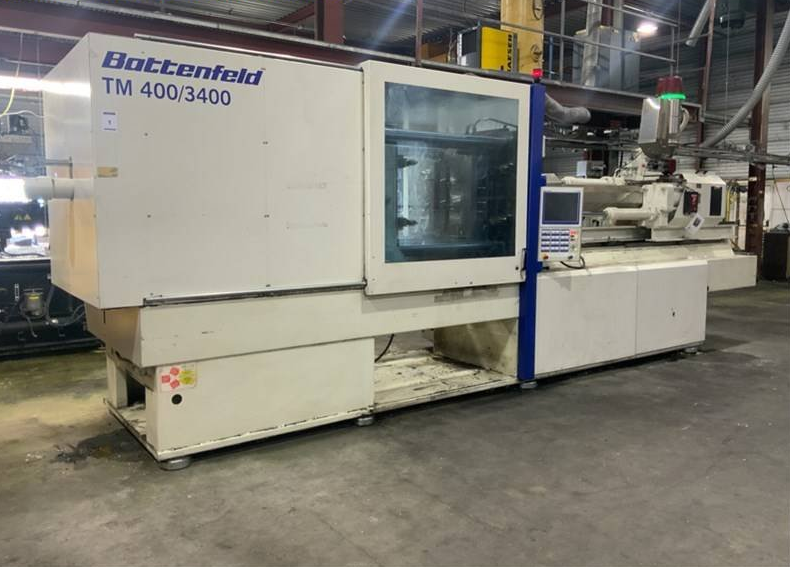

Battenfeld TM 400-3400 400 T

Control: UNILOG B6S
Year of manufacture: 2008
Operating hours: 25,856 h

Technical specifications, clamping side
Clamping force: 4,000 kN
Tie bar dimensions h x v: 710 x 710 mm
Platelet dimensions h x v: 1,010 x 1,010 mm
Min. installation height: 300 mm
Max. installation height: 710 mm
Max. platen spacing: 1,380 mm
Opening stroke: 670 mm
Ejector stroke: 250 mm
Ejector force: 81 kN
Centering of movable platen D: 160 mm
Centering of fixed platen D: 160 mm

Technical specifications, injection side
Screw diameter: 75 mm
Displacement: 1,657 cc
Injection pressure: 2,022 bar
Screw length: 22 l/d
Screw stroke: 375 mm
Screw speed: 178 rpm
Screw torque: 3759 N
Plasticizing flow: 67 g/s PS
Injection flow to the outside: 346 g/s PS
Nozzle travel: 600 mm

Dimensions & Weight
Machine dimensions LxWxH: 7.2 m x 1.75 m x 2.42 m
Total weight: 16,400 kg

Equipment
Multi-language display text
16A CEE socket
1x hydraulic core puller
1x air valve
1x leveling elements
EUROMAP 67 handling interface
USB interface
16A Schuko socket
