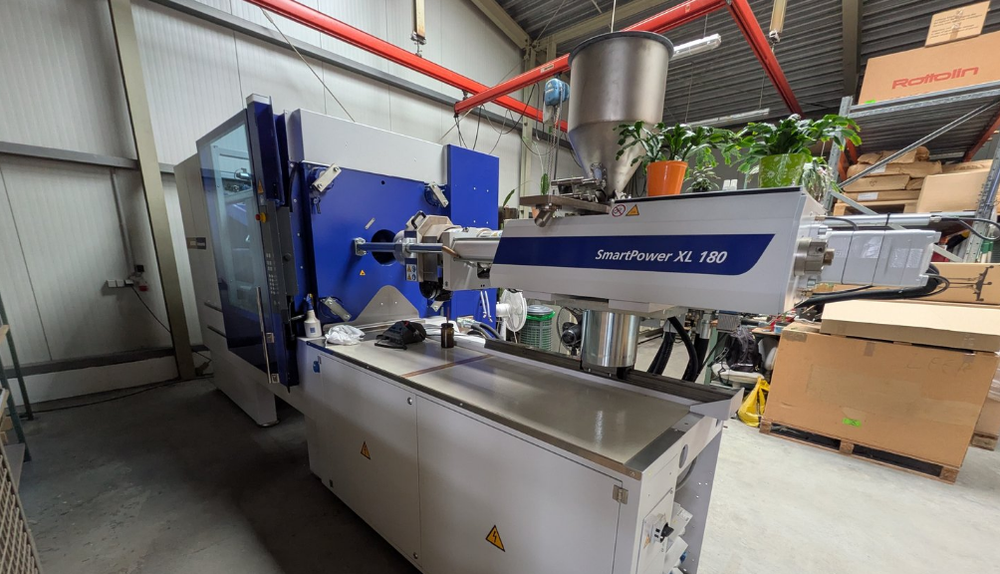

Battenfeld, Wittmann Smart Power XL 180-1330 180 T

Steering: UNILOG B8
Year of construction: 2019
Operating hours: 950 h

Technical data Closing side
Closing force: 1800 kN
Holm mass hxv: 710 x 660 mm
Plate size hxv: 950 x 955 mm
Minimum installation height: 300 mm
Maximum plate spacing: 950 mm
Opening method: 650 mm
Ejector stroke: 200 mm
Ejector force: 65 kN
Centering movable plate D: 160 mm
Centering fixed plate D: 160 mm
Tool weight: 2700 kg

Technical data spray side
Screw diameter: 55 mm
Engine displacement: 653 cc
Injection pressure: 2041 bear
Snail length: 22 l/d
snail stroke: 275 mm
worm speed: 278 min
Worm torque: 1940 N
Plasticizing current: 52 g/s PS
Injection flow to the open air: 300 g/s PS
Number of heating zones: 5
Nozzle path: 400 mm

Dimensions & Weight
Machine dimensions (L x W x H): 5.5 m x 1.8 m x 2.3 m
Total weight: 10500 KG

equipment
Bildschirmtext German
CEE socket 16A
Hydraulic core pull 2x
Air valve 1x
Machine with material hopper
Rigid PVC (PVC-H) injection side
Schuko socket 10A
