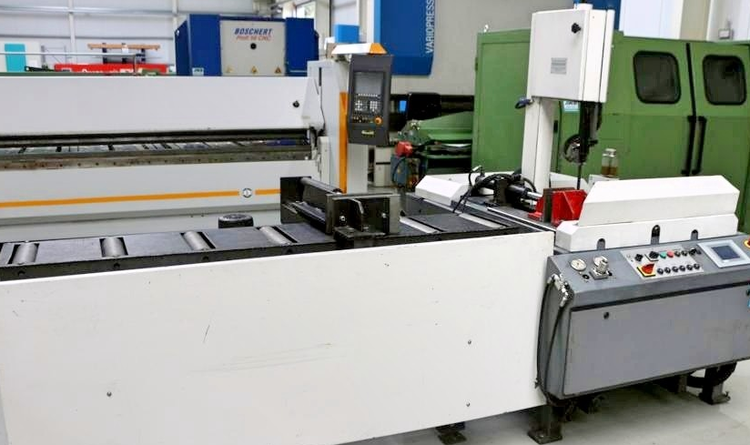

Bauer VG 320 ZA2 Band Saw SemiAutomatic

Cutting diameter: 320 mm
Saw band size: 3400 × 27 × 0.9 mm
Cutting capacity 90° flat: 320 × 400 mm
Cutting capacity 45° left flat: 320 × 280 mm
Cutting capacity 45° right flat: 320 × 260 mm
Cutting capacity 60° right flat: 320 × 140 mm
Band speed: 35 / 70 m/min
Maximum work height: 930 mm
Voltage: 400 V
Total power requirement: 2.67 kW
Machine weight: 950 kg
Additional unit weight: 250 kg
Electro-hydraulic vertical mitre band saw
Electro-hydraulic mitre adjustment left and right
Electro-hydraulic material clamping
Electro-hydraulic infeed from saw arm
Stepless cutting pressure adjustment
Up to 99 cutting programs
Central front operation for all machine functions
Loading from above possible
Precision measuring positioning system
Material support table
Material feed unit
Micro dosing device spray oiler
Operating instructions PDF
