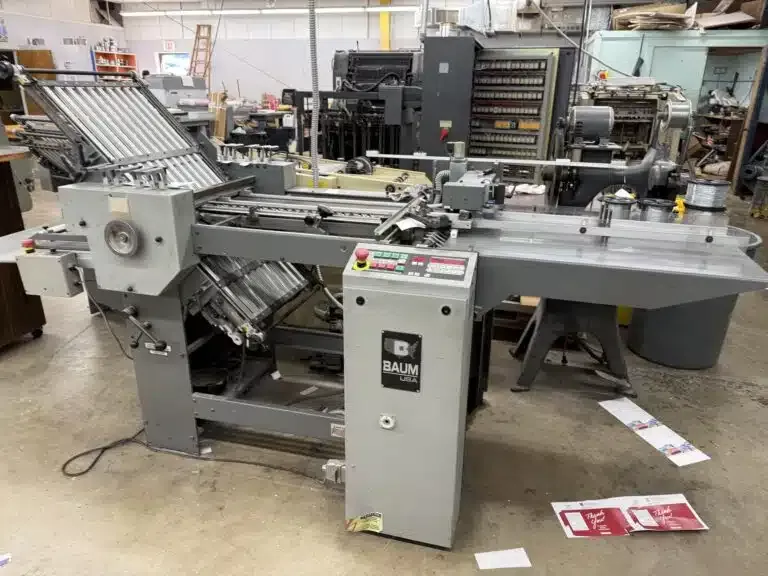

Baum 2020

Pile Feed Paper Folder
Maximum Sheet Size: 20.5″ x 33″ (521 mm x 838 mm)
Minimum Sheet Size: 4″ x 6″ (102 mm x 152 mm)
Speed: Up to 8,200 inches per minute (208.3 m/min)
Pile Stack Height: 25″
Slitter Shaft Diameter: 1-1/8″
Electrical Requirements: 220V, 3-phase, 60Hz (also available in 380–415V, 3-phase, 50Hz)
Pump Drive: 1.5 HP

Notable Features :
Touchscreen Control Panel: Simplifies operation with intuitive controls.
Baum iFold Tutorial System: Provides on-screen setup guidance, job memory storage, and maintenance alerts.
BaumQuick Roller Gapsets: Enables tool-free, paperless roller gap adjustments for quick setups.
Dual Front Blow Bars: Enhances sheet separation for consistent feeding.
Electronic Pile Height Sensor: Maintains optimal feeding consistency, even with wavy sheets.
Combination Fold Rolls: Knurled steel and urethane rolls handle various stocks, including coated and heavily inked papers.
Automatic Lubrication: Ensures smooth operation with minimal maintenance.
Helical Gear Drive: Provides quiet, positive gear engagement for consistent folds.
Open Access Feed Table: Facilitates easy loading and adjustments.

Applications:
The Baum 2020 Pile Feed Folder is versatile and well-suited for:
Commercial Printing: Brochures, flyers, and newsletters.
Direct Mail: Letters, inserts, and promotional materials.
Packaging Inserts: Instruction sheets and product information.
Financial Documents: Statements and reports.
