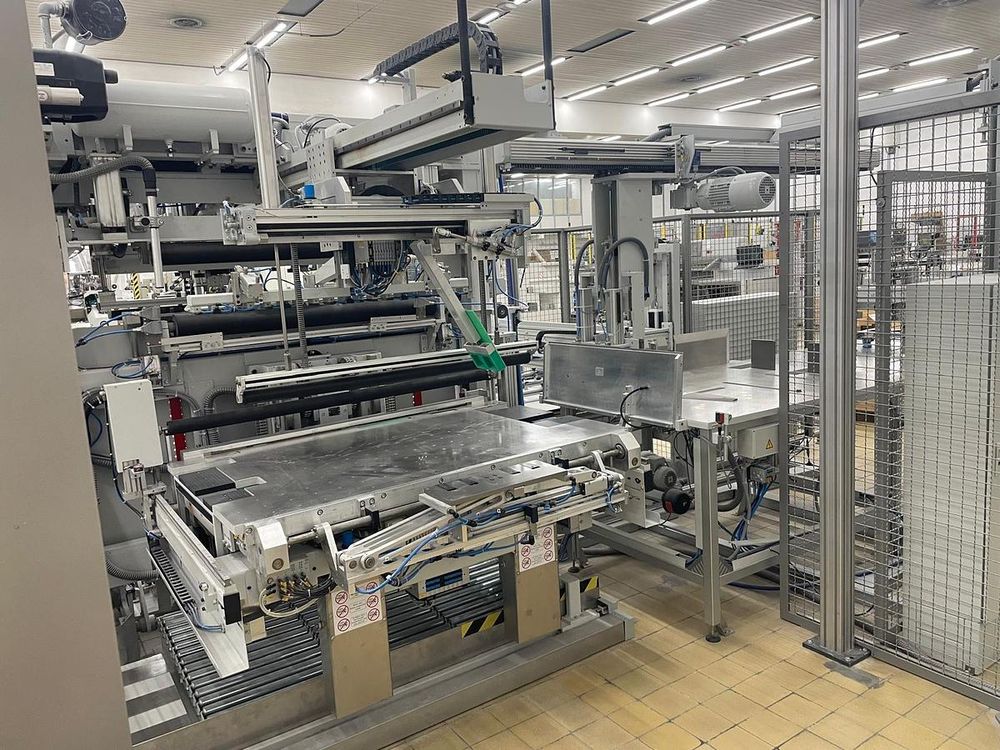

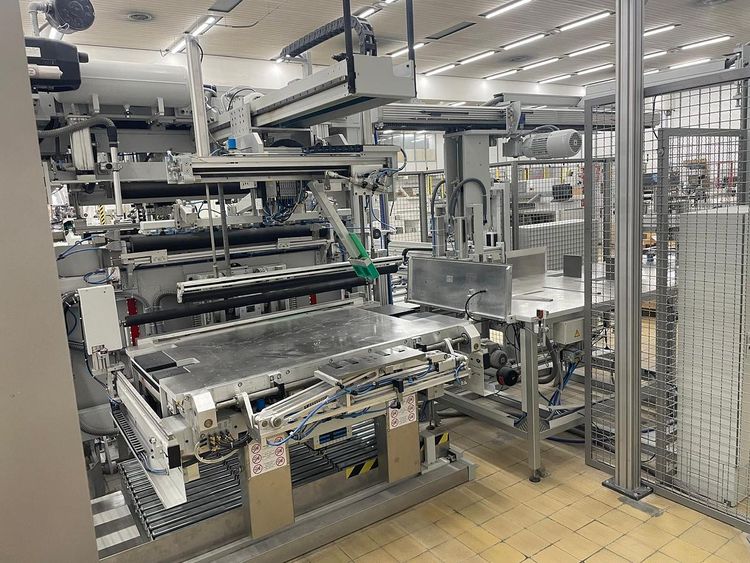

Baumann BASA 3 system

Automatic jogging line for cutting machines
Condition: operational
Still in production, inspection possible

Configuration:
Automatic pallet exchange
When a pallet is completed, the system automatically ejects it to the side output and feeds a new pallet from the infeed track
Automatic sheet feeding and counting
Automatic jogging and aeration
Automatic air removal from the pile
Automatic feeding into the airboard loader
Automatic loading of airboards
Automatic unloading of the pile onto a pallet, including airboards

Basic functions of the BASA system:
Automatically loads materials from a pallet
The transport system allows sequential loading from 2 pallets arranged in line; the empty pallet is automatically ejected
Counts / deducts the exact number of sheets
Jogs, aligns, aerates, and presses the piles
Places jogged piles onto separator cardboard
Subsequently separates piles using an airboard
Unloads piles onto a pallet
The BASA system only requires an operator to input or select a job in the system and to supply full pallets and remove empty ones
In off-line mode, the system can “feed” 2–3 cutting machines depending on the material used and pallet loading quality

Technical specifications:
Max. format: 770 × 1070 mm
Min. format: 700 × 650 mm
Sheet counter: GTS
