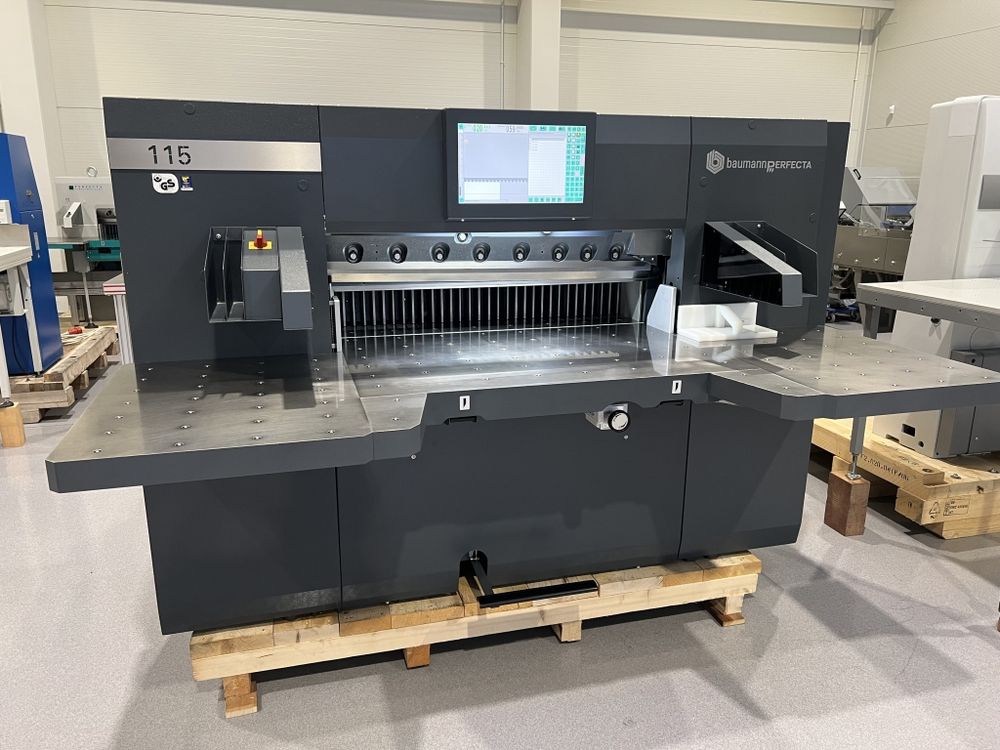

Baumann Perfecta 115

Paper Cutting Machine
The machine is in perfect condition and ready for production.
Available immediately from stock.
The guillotine can be used as a standalone unit or integrated with cutting systems.
Program generation is menu-driven and includes a variety of cutting tasks, such as single cut,
programming, multiple cuts, non-cutting hold-down, and automatic actual value transfer.

Distinguishing Features of the Baumann Perfecta Machine:
– Interactive User Interface
– 18.4” Touchscreen
– USB Interface
– Ethernet Interface
– Windows CE Operating System
– Positioning via Electronic Handwheel
– Optimized Cutting Cycle
– Programmable Hold-Down Pressure
– Automatic Adjustment of Hold-Down Pressure to Cutting Width
– Automated Front-Mounted Knife Change
– Quick Knife Change
– New Machine Body Cast in One Piece = Increased Stability
– Maintenance-Free Electromagnetic Clutch

Technical Data:
Cutting Length: 1150 mm
Maximum Stack Height: 165 mm
Infeed Depth: 1150 mm
Minimum Cutting Capacity with Sheet Metal Under Pressure Beam: 77 mm
Minimum Cutting Capacity Without Sheet Metal Under Pressure Beam: 20 mm
Maximum Saddle Feed Speed: 300 mm/s
Maximum Mechanical Efficiency Knife speed: 44 cycles/min
Saddle movement: above the work table
Main motor power: 4 kW
Net weight: 3200 kg
The machine is equipped with a spare knife, cutting sticks, a pressure plate, documentation, and tools.
