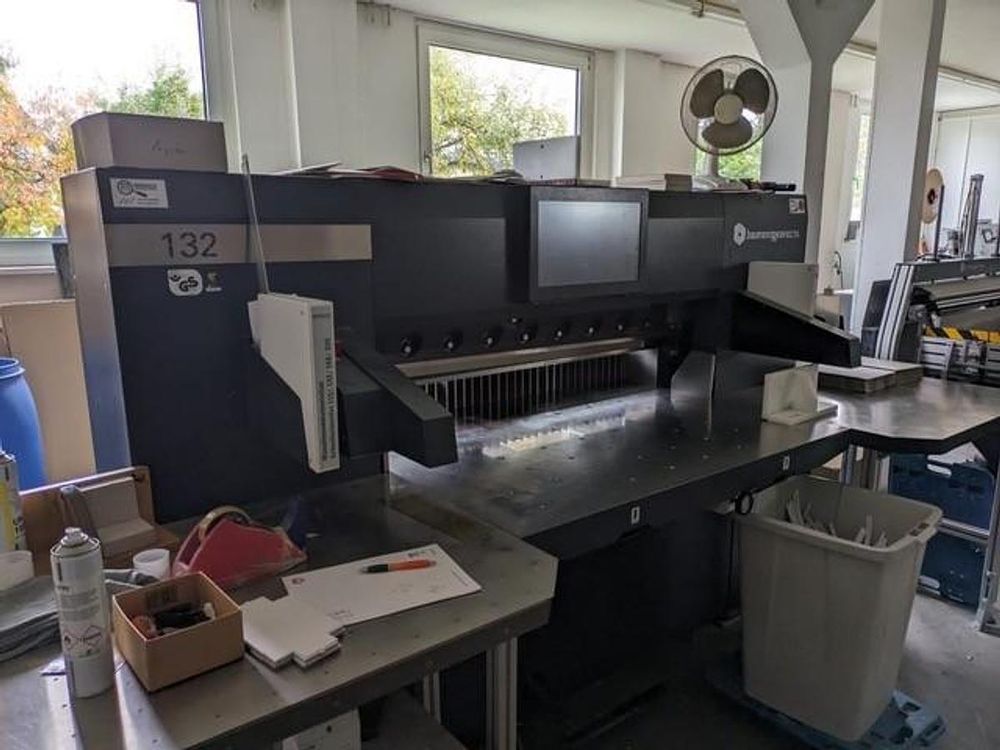

Baumann, Perfecta 132

Condition: verry good
Straight 2 Cut - SW for data processing
The processing takes place directly in the high speed cutter.
The prepress data is scanned via barcode and converted into cutting programs directly on the cutter.

Straight 2 Cut consists of the following 4 modules:
CutTronic – pre-press data is automatically converted into a cutting program
Hotfolder – fast and easy connection of the machine to the network
Barcode-reader – direct opening of the order file without searching
Graphic process visualization directly on the display

Technical specification:
cutting width - 1320 mm
loading depth - 1320 mm
maximum press gap - 165 mm
minimum cut without cover plate/with cover plate - 20/77 mm
carriage speed - 300 mm/s
pressing force - 2.5-45 kN
safe pressing force - 300 N
main motor power - 4 kW
table height - 870 mm
dimensions (W x H x D) - 2470 x 1660 x 3430 mm
machine weight - 3410 kg
