Bausch & Stroebel FAW 2020+ DHT 2580 + KSF 1025

Aseptic Filling and Closing Machines

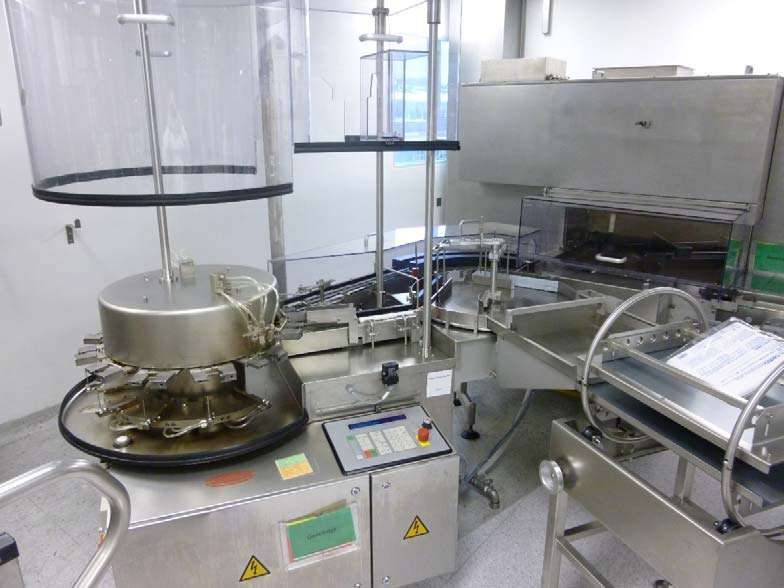

Line composed of
1. Vial washing machine B&S Type FAW 2020
2. Hot air sterilizing tunnel B&S Type DHT 2580
3. Filling machine B&S Type KSF 1025

1. The cleaning machines of the FAW series are designed for wet cleaning of vials,
bottles, ampoules and similar types of container,
including non-stable containers, to pharmaceutical industry standards.
The containers are conveyed through the work area very gently in an intermittent flow.
By using the pressure-controlled rinsing and spraying system
and various cleaning media, optimal pharma-compliant cleaning
of all containers is assured.
The various cleaning media can be used in any chosen order,
and the line system is configured in such a way that media do not mix.
The sterilizing tunnel DHT2550 dry,
sterilize and depyrogenize glass containers using a low-turbulence vertical air flow.
The sterilizing-grade filters or integrated high-efficiency particulate air filters (HEPA filters)
do not require any sealing on the air discharge side.
Special hot gas filters in the sterilization zone produce a cleanroom class
A atmosphere in all operating conditions
(even during the pre-heating and cooling phases).
The tunnels have multiple insulation layers to prevent heat loss
and maximize energy efficiency.

HIGHLIGHTS
Low-turbulence, vertical air flow for optimal heat transfer
• Precise maintenance of production parameters
• Gentle container heating
• High energy efficiency
• B+S hot gas filter with long filter life
• Easy and centralized operation
• Pharmaceutical design
Output Processing range up to 73 kg/h (mass transport)
Container height: 35 - 150 mm

3. Fully automatic intermittent-motion machine KSF1025
for filling and closing cylindrical glass, plastic or metal containers
such as bottles and vials with up to two different types of closure.
The machines have a wide range of uses in the pharmaceutical,
cosmetic and other related industries.
The dosing station is designed to process liquid products using rotary piston pumps.
However, it can also be equipped with alternative dosing technology
such as peristaltic pumps or a time-pressure dosing system.
It is possible to process all standard types of closure,
such as rubber stoppers, droppers, screw caps, pilfer-proof caps
and crimp caps, including special closures with pipettes,
pump spray assemblies, child-proof closures etc.

• Easy processing of both liquid and viscous products
• Up to two different types of closure
• Precise maintenance of production parameters
• Easy and centralized operation
Output Processing range up to 4,200 items/h
Container diameter: 15 - 58 mm
Container height: 35 - 130 mm
Formats: 2R 2ml, 6R 5ml, 6R 10ml, 20H, 50H und 100H
