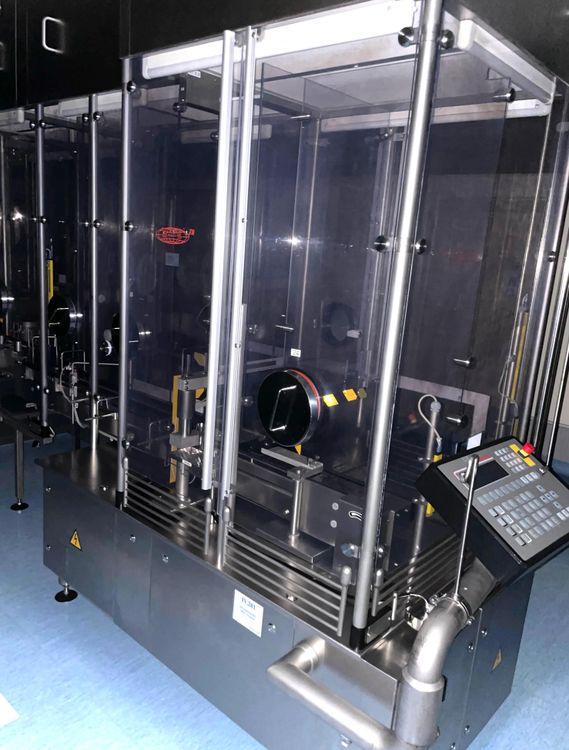

Bausch & Stroebel HYDRA 1300.10 + PROT + WDS 5080, Vials Filling Line

Composed of
1) IMA LIBRA WASHER, MODEL HYDRA 1300.10
Linear washing machine for vials and bottles of all sizes. Suitable for plastic and oval containers upon request.

MACHINE CHARACTERISTICS
performs thousands of customised washing cycles
uses a recycled water loop in washing machine, allowing for WFI consumption saving

PRODUCTION CHARACTERISTICS
Production: 12.000 pcs/hour
Baskets per row: 10
Typical basket: B/C
Minimum mouth diameter: 10 mm
Maximum height: 110 mm
External diameter: 20-52 mm

2) PROT TUNNEL

3) BAUSCH+STRÖBEL VIALS FILLER, MODEL WDS 5080
Weight dosing machine, extended by the closing unit (composed of sorting bowl, feed and distribution plate, inserting tool) and the container centering device.

MACHINE CHARACTERISTICS
Machine designed as an in-line unit. Objects are loaded and unloaded automatically by upstream and downstream machines.
Working height of objects: 110 mm
Maximum working diameter: 56 mm (with 10 positions)
Maximum weighing capacity (object + filling): 50 g

PRODUCTION CHARACTERISTICS
Output: up to 5 at the time
Dosing units: 10 (standard)
Capping stations: 10
Caps: Lyo-type elastomer type
