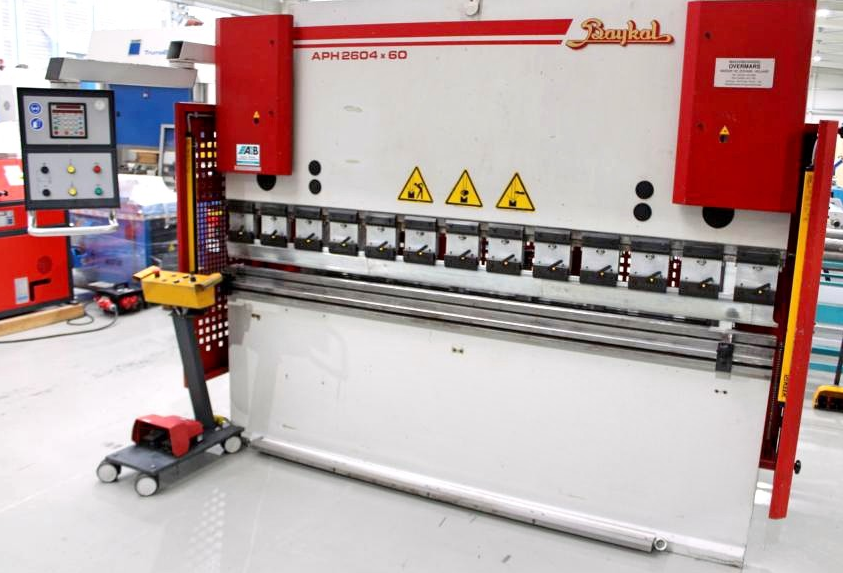

Baykal APH 2604x60 60Ton

Press Force 60 t
Chamfer Length 2,600 mm
Distance Between Columns 2,050 mm
Column Arm 310 mm
Working Feed 10 mm/sec
Return Speed 61 mm/sec
Stroke 100 - 140 mm
Daylight 450 mm
Table Height 860 mm
Oil Volume 100 l
Control ELGO P8822
Operating Pressure Max. 200 bar
Operating Hours 2,370 h
Voltage 380 V
Total Power Requirement 5.5 kW
Weight 5,000 kg
Machine Footprint 3,000 x 1,850 x 2,050 mm
NC Electro-Hydraulic Press Brake
ELGO NC Control Unit P8822
Input of Target/Actual Values for Back Stop
Input of Target/Actual Values for Depth Adjustment
Swiveling Operation, Front Left
Manual Mode Selectable
NC Controlled Axes Y1 + Y2 + X
NC Electro-Motorized Back Stop on Ball Screws
4x Manually Adjustable Stop Fingers
Adjustment in R+Z Axis
Upper Tool Holder SYSTEM A (AMADA) with Upper Wedge Crowning
1x Split Set of Upper Tools
Clamping Jaws with Clamping Lever (Quick Clamp)
1x Universally Rotatable MULTI V Die Block
2x Side-Hinged Doors
1x Rear Sliding Door
2x Front Stable Support Arms
1x Freely Movable Foot Control on Rollers
Operating Instructions PDF
