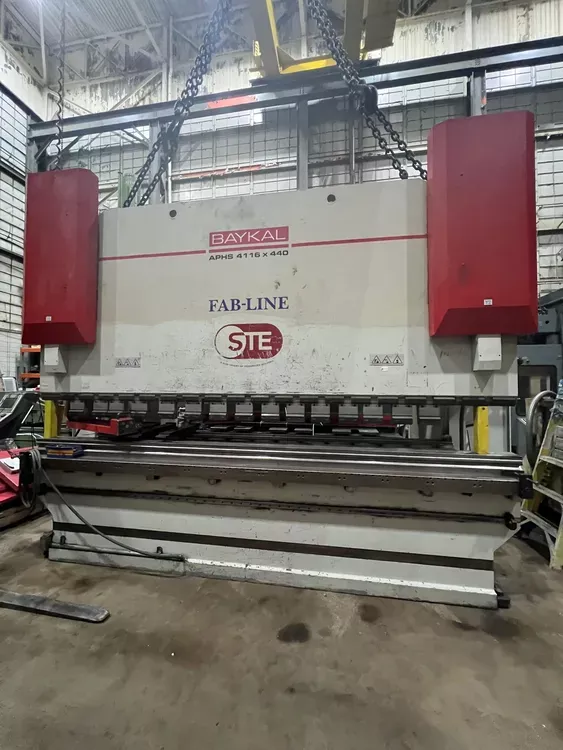

Baykal APHS 4116 x 440 480 Ton

Ref : 2735872-3-MT

Condition : Used

Manufacturer : Baykal

Model : APHS 4116 x 440

Pressure : 480 Ton

Year(s) : 2011

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Press Force: 480 Ton
Overall Bending Length: 13' 4"
Capacity: 13′ 5″ x 480 Ton
Distance Between Housings: 11′ 7″
Stroke of Ram: 12.6″
Open Daylight: 23.2″
Advance Speed: 189 IPM
Pressing Speed: 23 IPM
Return Speed: 165 IPM
Maximum Back Gauge Travel: 29.5″ + 9.8″ (second stop)
Table Width: 15″
Distance Floor to Top of Bed: 43.5″
Throat Depth: 19.7″
Motor: 40 HP
Weight: 60,000 lbs
Dimensions (LxWxH): 200″ x 90″ x 138″
